Why this one
01
305 mm crosscut
60 mm deep at 90°; mitre 60° both ways, bevel 47°/46°.
02
2 × 18V brushless
EC-TEC drive with mains-level cutting power.
03
LED shadow line
Spotlight projects the blade shadow as the cutting line.
04
17.3 kg portable
Flush twin-column guide, two carry handles, transport lock.
The story

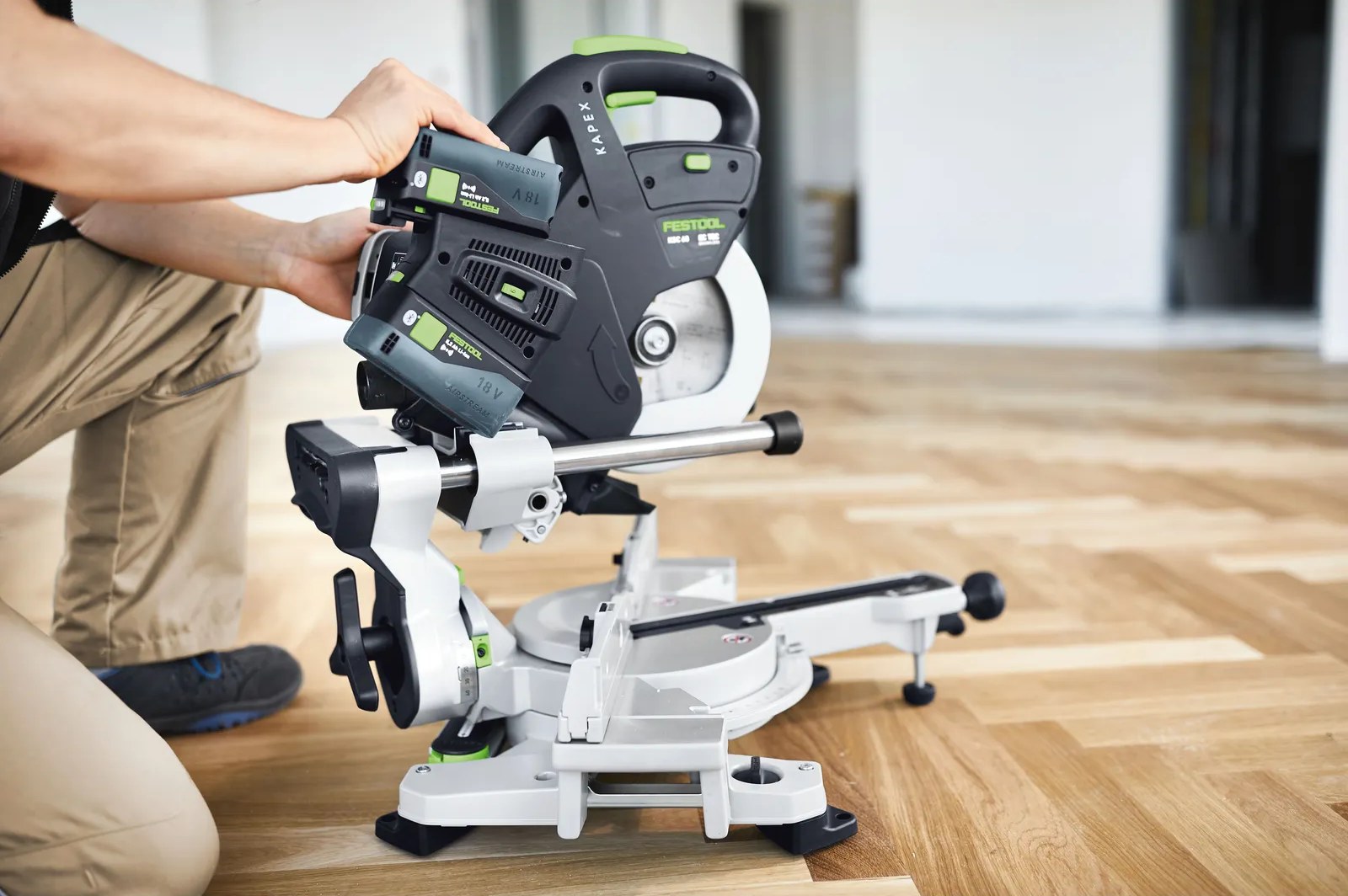

Trim and flooring work on site

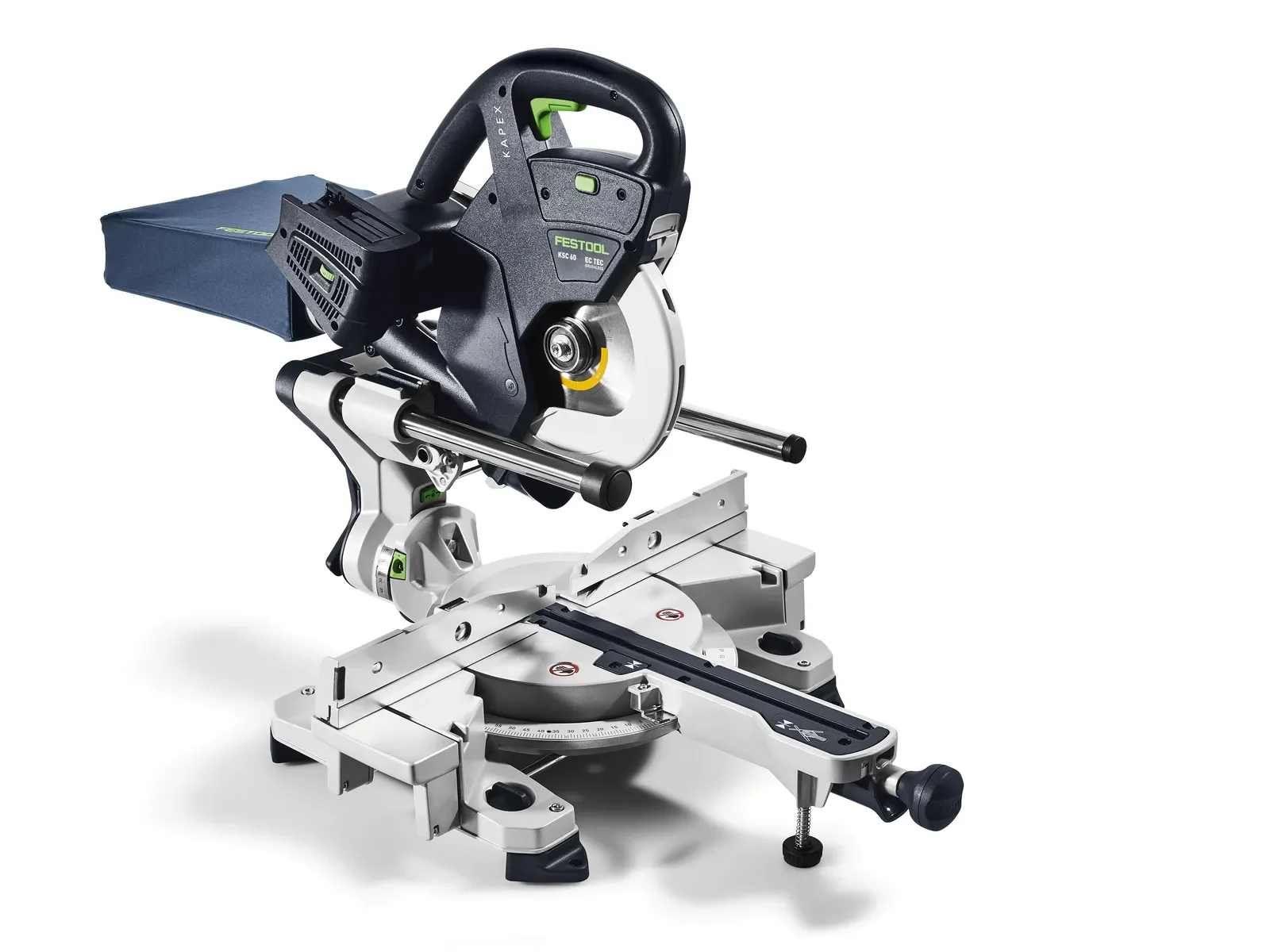

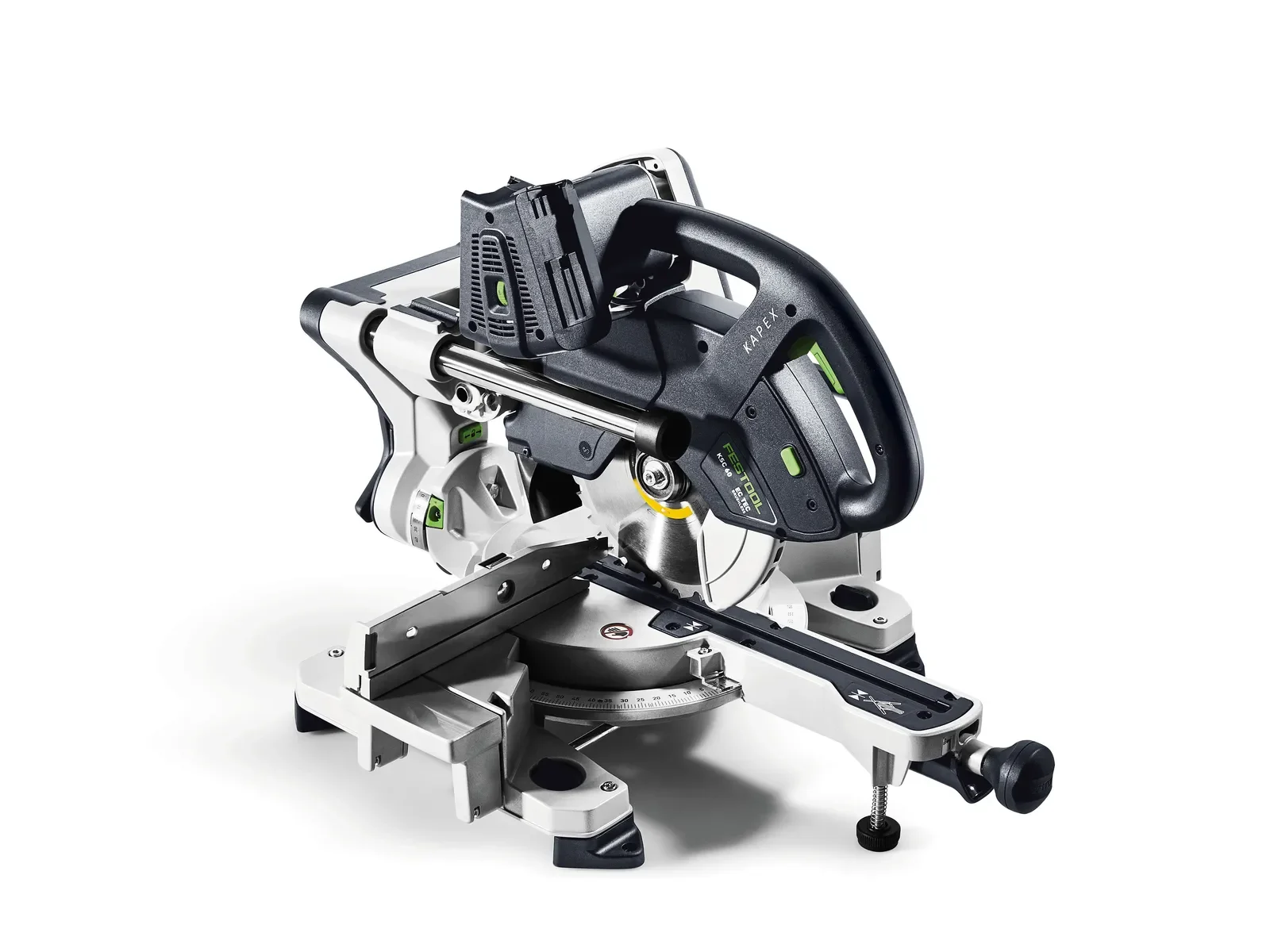

The KSC 60 is built for carpenters, floor layers and interior fitters who cut skirting, architraves, laminate and battens on site. It crosscuts 305 mm at 60 mm depth, mitres to 60° both sides and bevels to 47° left and 46° right. The twin-column guide sits flush, so the saw needs little space behind it.
Cordless, without the compromise
The brushless EC-TEC motor on two 18V packs gives it the power of a corded saw. Speed can be preset for the material, a quick-acting brake stops the blade, and an LED spotlight casts the blade's shadow on the workpiece as a cutting line. Two carrying handles and a transport lock make it easy to move.
A small workshop in itself
The pull-out extension and supplied riser feet line the table up with a SYS3 M 112 or SYS 1 Systainer for long stock. The SM-KS bevel measures angles for transfer to the saw. Chips go to the bag or a CLEANTEC extractor. The Basic version has no battery; the Set-UG adds an underframe.
Specifications
Sawing
- Blade diameterEF002855
- 216mm
- ArborEF002856
- 30mm
- Cutting depth at 90°EF002849
- 60mm
- Cutting depth at 45°EF002850
- 40mm
- Max. bevel angleEF004988
- 47°
- Max. mitre angle
- 60°
- Max. cutting width
