Why this one
01
305 mm crosscut
60 mm deep at 90°, 215 mm wide at 45° mitre.
02
47°/46° bevels
Bevel both ways, mitre to 60° left and right.
03
17.9 kg
Integrated handles for carrying between rooms.
04
Variable speed
1,300–3,500 rpm to suit wood, plastics and profiles.
The story
Made to be carried

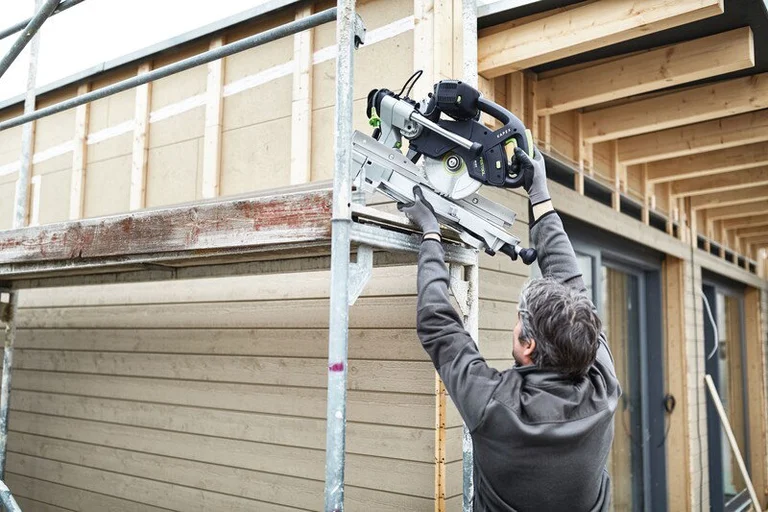

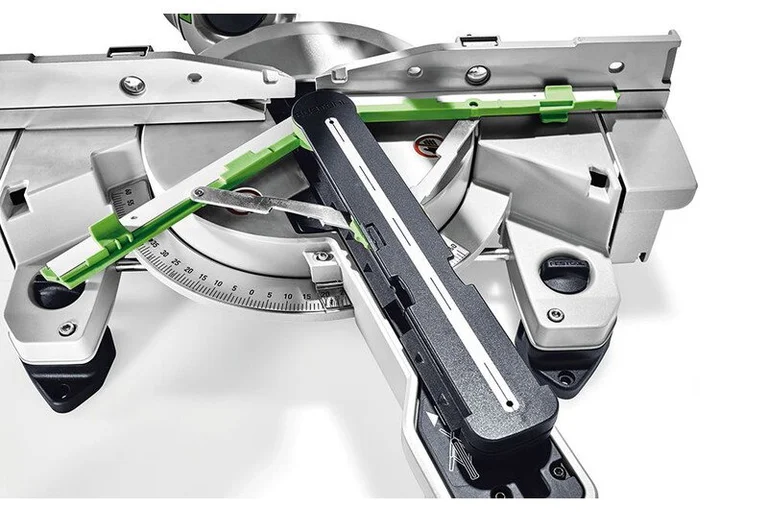

Floor layers, trim carpenters and fitters need a mitre saw that moves from room to room. The KS 60 weighs under 18 kg and has carrying handles built into the frame, yet cuts boards up to 305 mm wide and 60 mm thick. It trims skirting, architraves, strips and square timber, and with the optional bevel copies wall angles for skirting and cornices without calculations.
KAPEX precision
MMC electronics set the speed from 1,300 to 3,500 rpm for wood, plastics and aluminium profiles, and the double-rail sliding head keeps cuts accurate at full width. The optional SL-KS 60 spotlight casts a shadow line where the blade will enter. It connects to a CLEANTEC extractor. Supplied with a universal blade and FSZ 120 clamp; the Set adds the spotlight, bevel and height extensions.
Specifications
Sawing
- Blade diameterEF002855
- 216mm
- ArborEF002856
- 30mm
- Cutting depth at 90°EF002849
- 60mm
- Cutting depth at 45°EF002850
- 40mm
- Max. bevel angleEF004988
- 47°
- Max. mitre angle
- 60°
- Max. cutting width
