Why this one
01
KickbackStop
Stops the blade in milliseconds if the saw kicks back.
02
2 × 18V brushless
Runs on two packs for full power or one for lighter cuts.
03
FS guide rail
Straight, splinter-free cuts with splinterguard on both sides.
04
55 mm cut depth
43 mm at 45°, bevel from -1° to 47°.
The story
Panel cutting on site

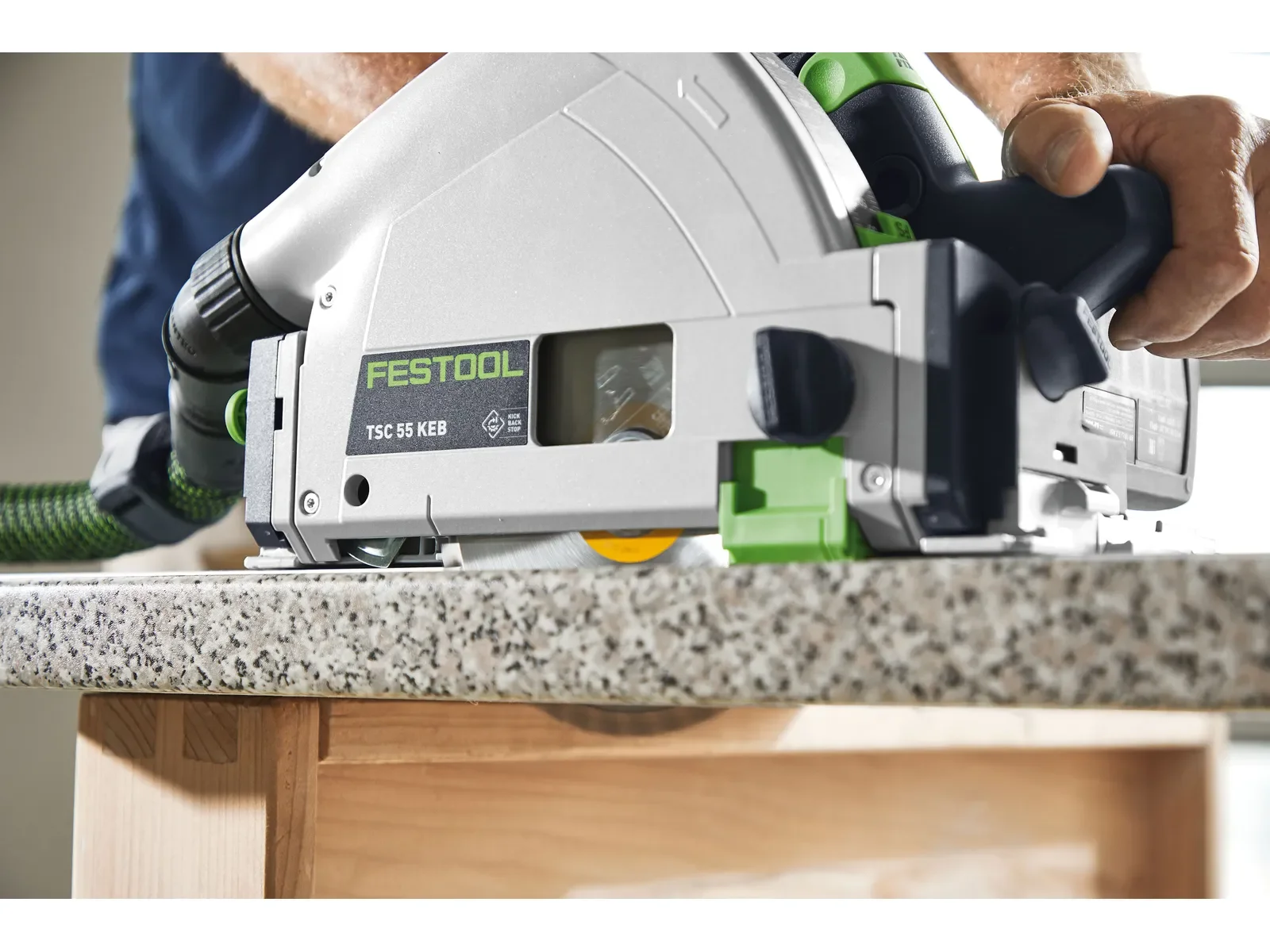

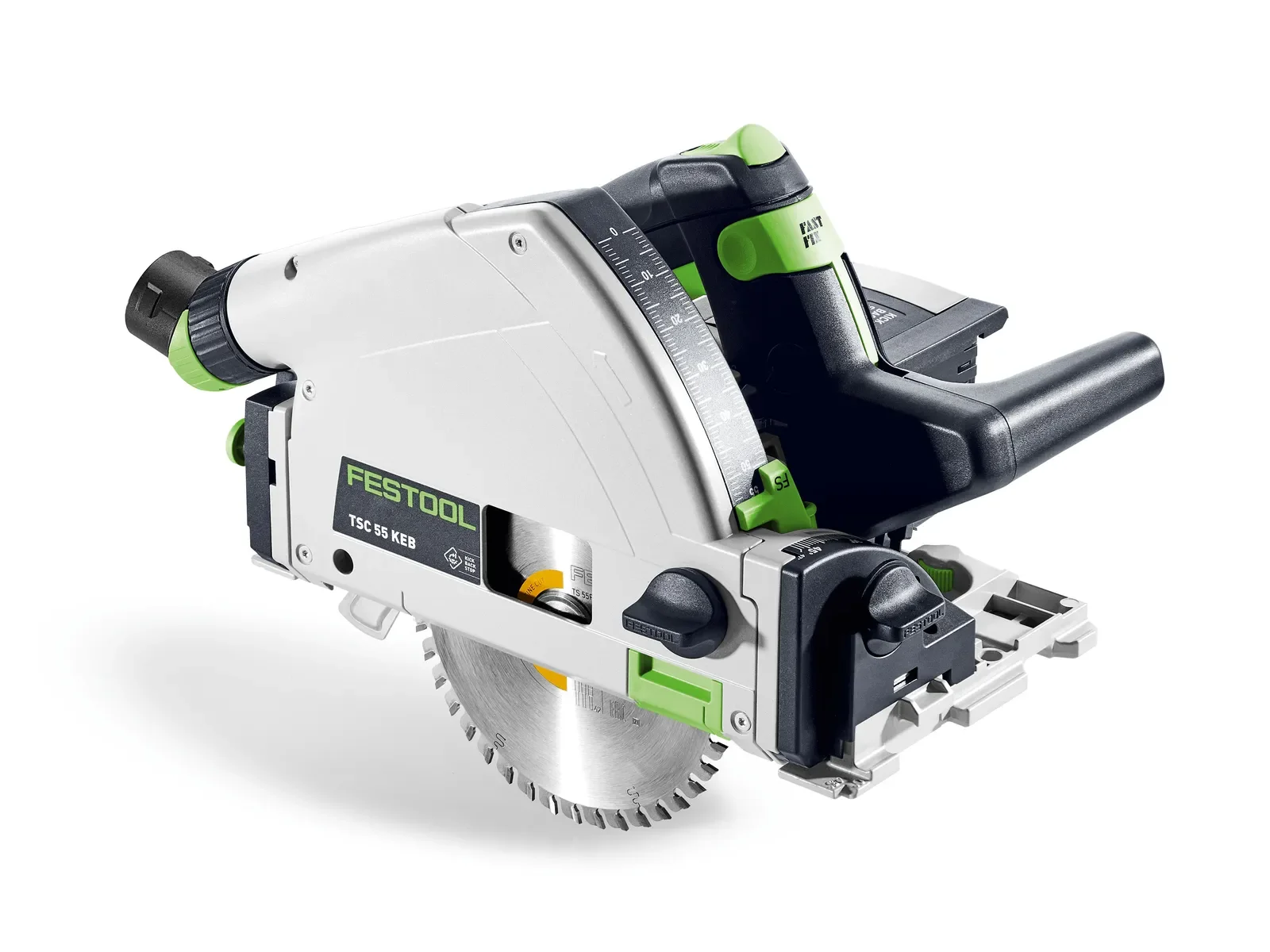

The TSC 55 K is for joiners, kitchen fitters and interior carpenters who need straight, splinter-free cuts in sheet material without a table saw or a cable. On an FS guide rail it rips worktops, trims doors and cuts panels to size, with bevels from -1° to 47° and a cut line that stays put when tilting.
KickbackStop and brushless drive
A sensor watches for kickback while sawing and plunging and stops the blade in fractions of a second; it can be switched off for single cuts and resets on the next start. The brushless EC-TEC motor concentrates torque for fast progress and longer blade life. Two 18V packs give maximum power; one pack works for lighter cuts.
Built around the system

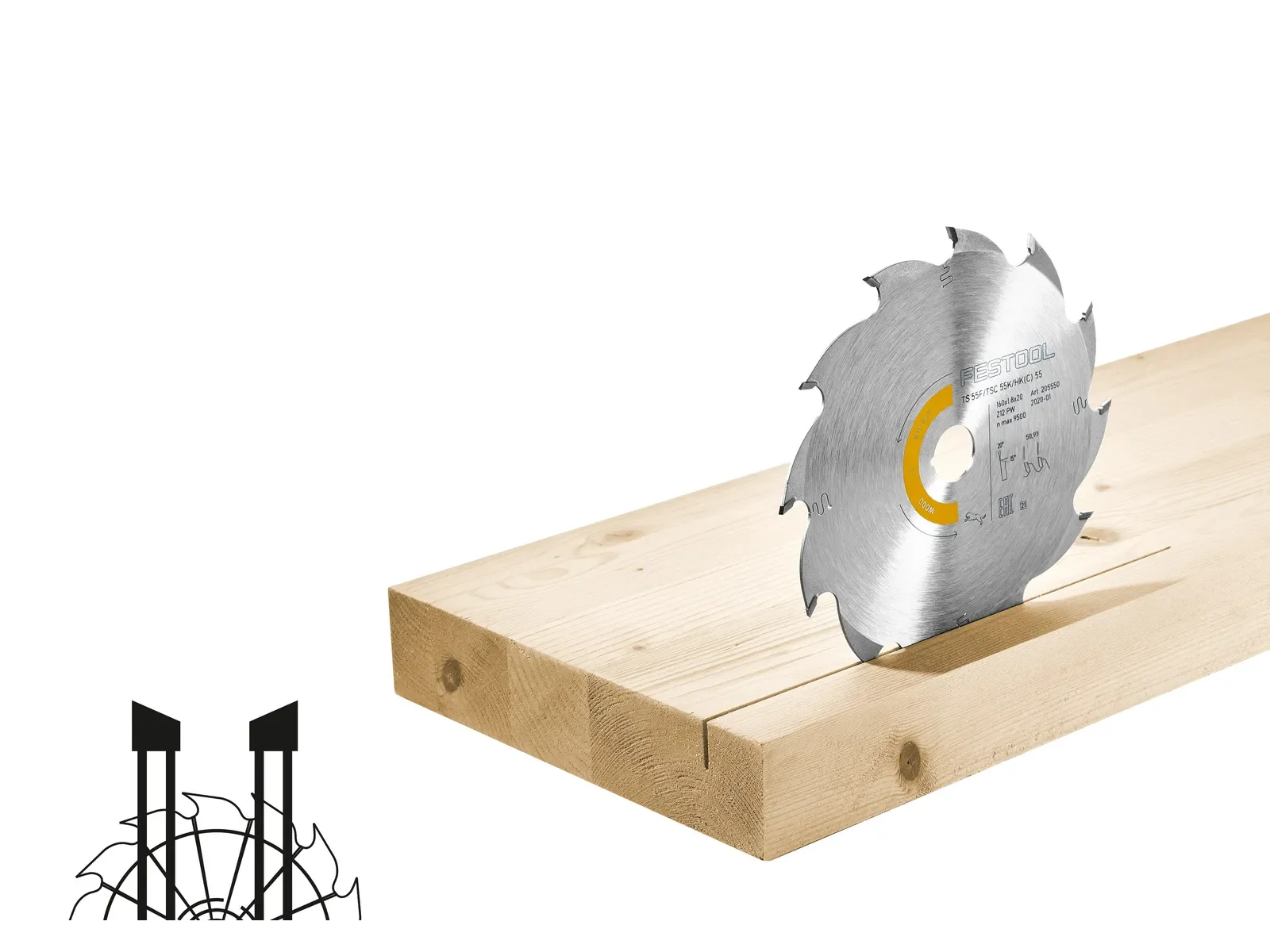

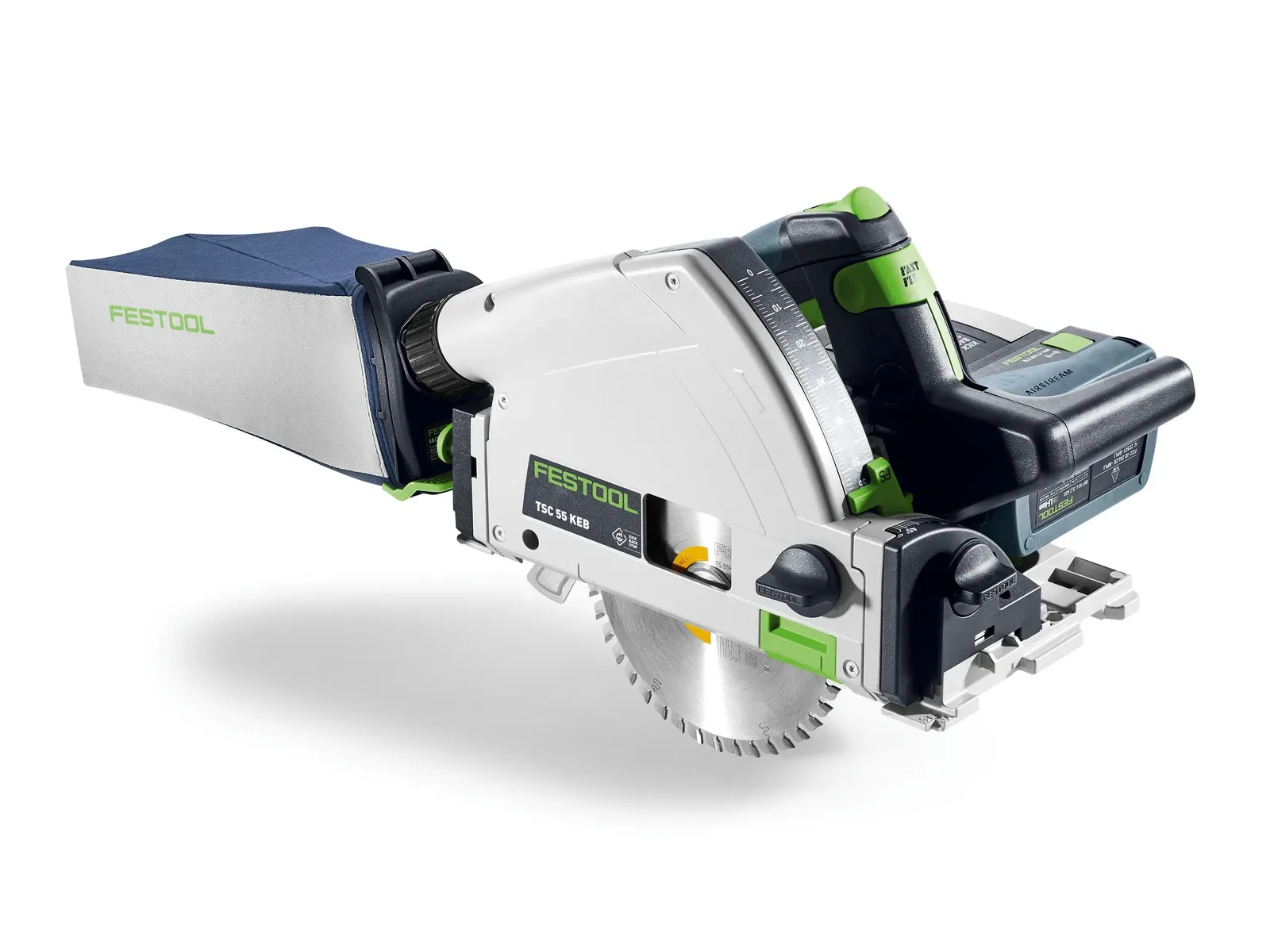

The saw rides FS guide rails, clips on a splinterguard for clean edges on both sides and changes blades through the FastFix spindle lock. Dust goes to the supplied chip bag or to a CLEANTEC extractor that starts via Bluetooth. The Basic version ships with a 42-tooth blade in a Systainer³ SYS3 M 437.
Specifications
Sawing
- Blade diameterEF002855
- 160mm
- ArborEF002856
- 20mm
- Cutting depth at 90°EF002849
- 55mm
- Cutting depth at 45°EF002850
- 43mm
- Max. bevel angleEF004988
- 47°
- No-load speedEF008538
- 5,2001/min
