Why this one
01
62 mm depth
45 mm at 45°, bevel from -1° to 47°.
02
KickbackStop
Brakes the blade in milliseconds if the saw kicks back.
03
FSK compatible
Clicks onto cross-cutting rails for mitre cuts.
04
1,500 W EC-TEC
Brushless drive with constant speed under load.
The story
A little deeper, a lot more versatile

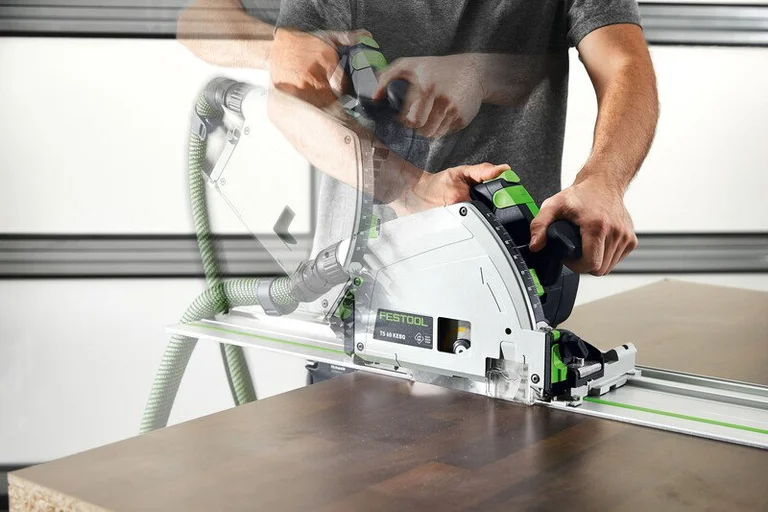

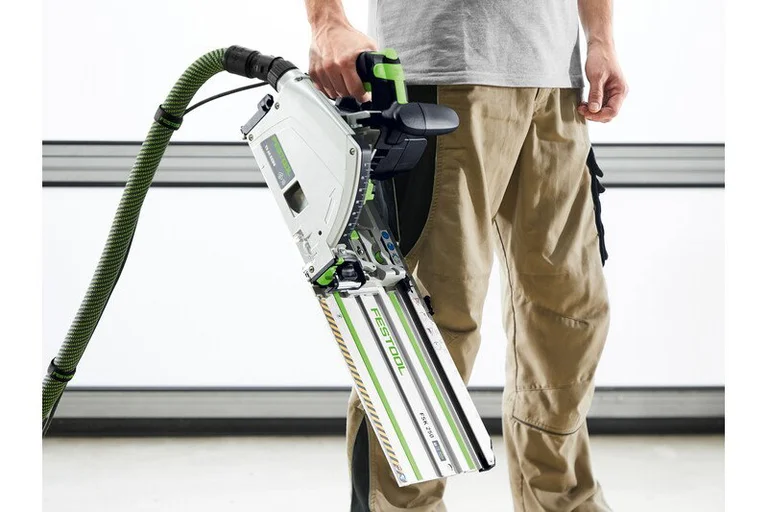

The TS 60 K keeps the size and weight of the TS 55 but cuts 62 mm deep, enough for solid worktops, stair treads and doubled boards. Joiners and kitchen fitters use it for panel sizing, worktop cut-outs, trimming doors and cutting expansion joints in parquet. On a guide rail it cuts splinter-free both sides; on an FSK rail it becomes a portable mitre saw for boards and slats.
Safer and quicker to set up
KickbackStop senses the saw kicking back and brakes the blade within milliseconds. The brushless EC-TEC motor and thin-kerf 1.8 mm blades keep feed rates up with less effort, while MMC electronics hold the speed under load. FastFix locks the spindle for tool-free blade changes, and the sliding window shows the blade. Supplied with a fine-cut blade and plug it cable in a Systainer³ SYS3 M 337.
Specifications
Sawing
- Blade diameterEF002855
- 168mm
- ArborEF002856
- 20mm
- Cutting depth at 90°EF002849
- 62mm
- Cutting depth at 45°EF002850
- 45mm
- Max. bevel angleEF004988
- 47°
- No-load speedEF008538
- 6,8001/min
