Why this one
01
120 mm in wood

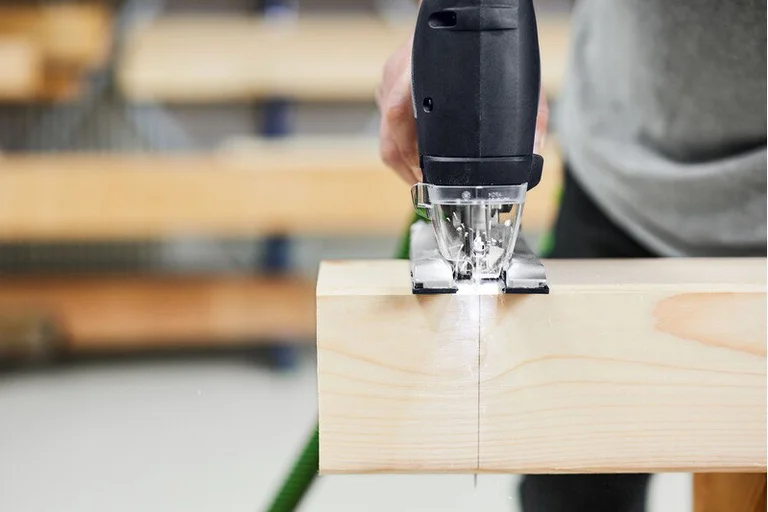

Deep, square cuts through beams and solid timber.
02
Three-point guide
Guide jaws keep the blade upright in thick stock.
03
Four pendulum steps

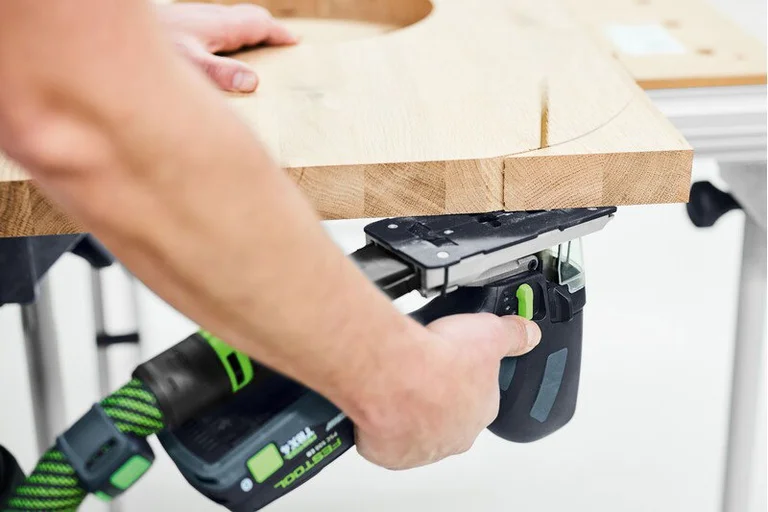

From fine curves to fast straight cuts.
04
Bluetooth
Extractor auto-start and app data with an ASI battery.
The story
Deep cuts that stay square
The PSC 500 is built for carpenters and fitters who cut beams, rafters, stair treads and decking to contour, and for kitchen fitters cutting sink and hob openings. Guide jaws and a three-point guide hold the blade upright even in 120 mm of solid wood, and the pendulum action can be set in four steps from fine to fast. The shoe tilts for bevels and locks positively at 0°.
Clear view, clean edge
A blower, switchable light and extraction keep the scribe line visible, and a splinter guard gives clean edges on both faces of veneered and coated boards. Blades change tool-free via FastFix. With a Bluetooth battery the saw starts a CLEANTEC extractor and reports operating data in the app. The Basic version comes with two blades, splinter guard and extraction connector in a Systainer³.
Specifications
Sawing
- Max. cutting depth, woodEF002882
- 120mm
- Max. cutting depth, steelEF004976
- 10mm
- Max. bevel angleEF004988
- 45°
- Stroke lengthEF000174
- 26mm
- Stroke rateEF004890
- 3,8001/min
- Pendulum settings
- 4
- Guide rail compatible
