Why this one
01
200 mm radar
Detects objects up to 200 mm deep in dry concrete.
02
3D imaging
Easy-to-read view of the wall and embedded objects.
03
Material ID
Distinguishes live, ferrous, non-ferrous and non-metal objects.
04
18V powered
Runs on the same packs as your cordless tools.
The story
Who it's for
Electricians, plumbers, core drillers and structural installers who must know what is inside a wall or slab before they drill or cut. It identifies live cables, magnetic and non-magnetic metals, water-filled and empty plastic pipes, and timber substructure. Checking first helps avoid costly strikes on cables and pipes.
What sets it apart
Bosch radar with AI-based evaluation reaches 200 mm in dry concrete, 80 mm in other wall types and 60 mm in young concrete. Several views, including a 3D image of the wall area, show object positions with ±5 mm accuracy. Leak detection and distance measurement are built in.
System and kit

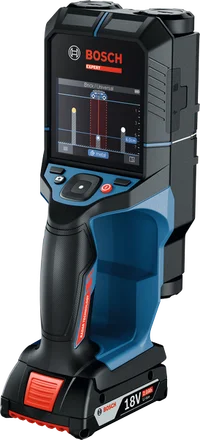

It runs on a Bosch 18V battery, so no special pack is needed. Data exports via USB-C or micro-SD, and the firmware can be updated. The European kit includes a GBA 18V 2.0 Ah pack, GAL 18V-20 charger and L-BOXX 136.
Specifications
Measuring & detection
- Accuracy
- 5mm
- Detection depthEF001856
- 200mm
- Detects
- Ferrous metal, Non-ferrous metal, Live wires, Wooden studs, Plastic pipes
- BluetoothEF007699
- — No
- Receiver included
- — No
Power
- Power sourceEF000145
- Cordless (battery)
