Why this one
01
135 mm in wood
Also 10 mm steel and 25 mm aluminium.
02
Four pendulum settings
From fine scroll cuts to fast straight cuts.
03
Tool-free changes
Lever blade clamp and 0–45° bevel shoe without keys.
04
AIRLOCK dust port
Connects straight to DeWalt extractor hoses.
The story

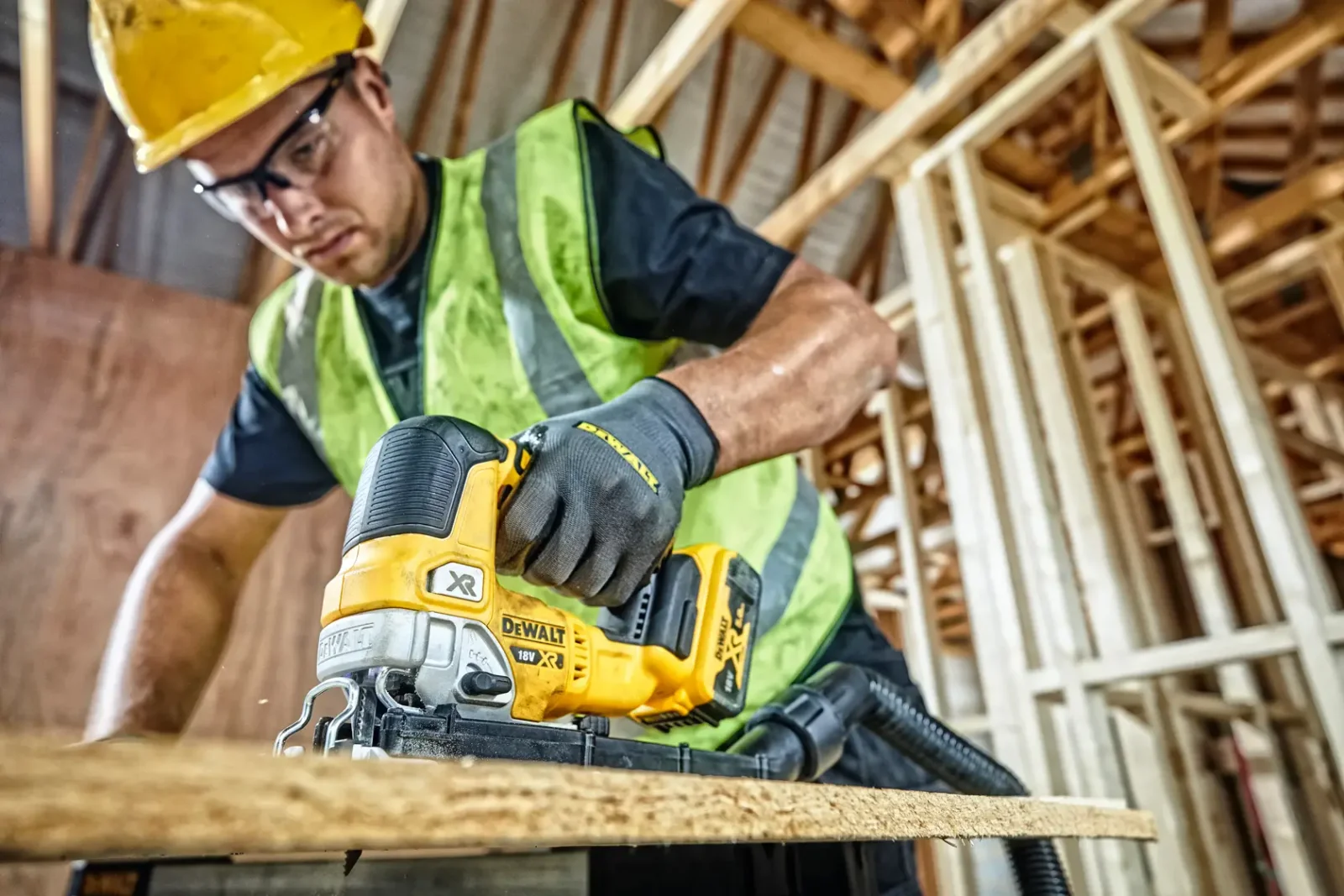

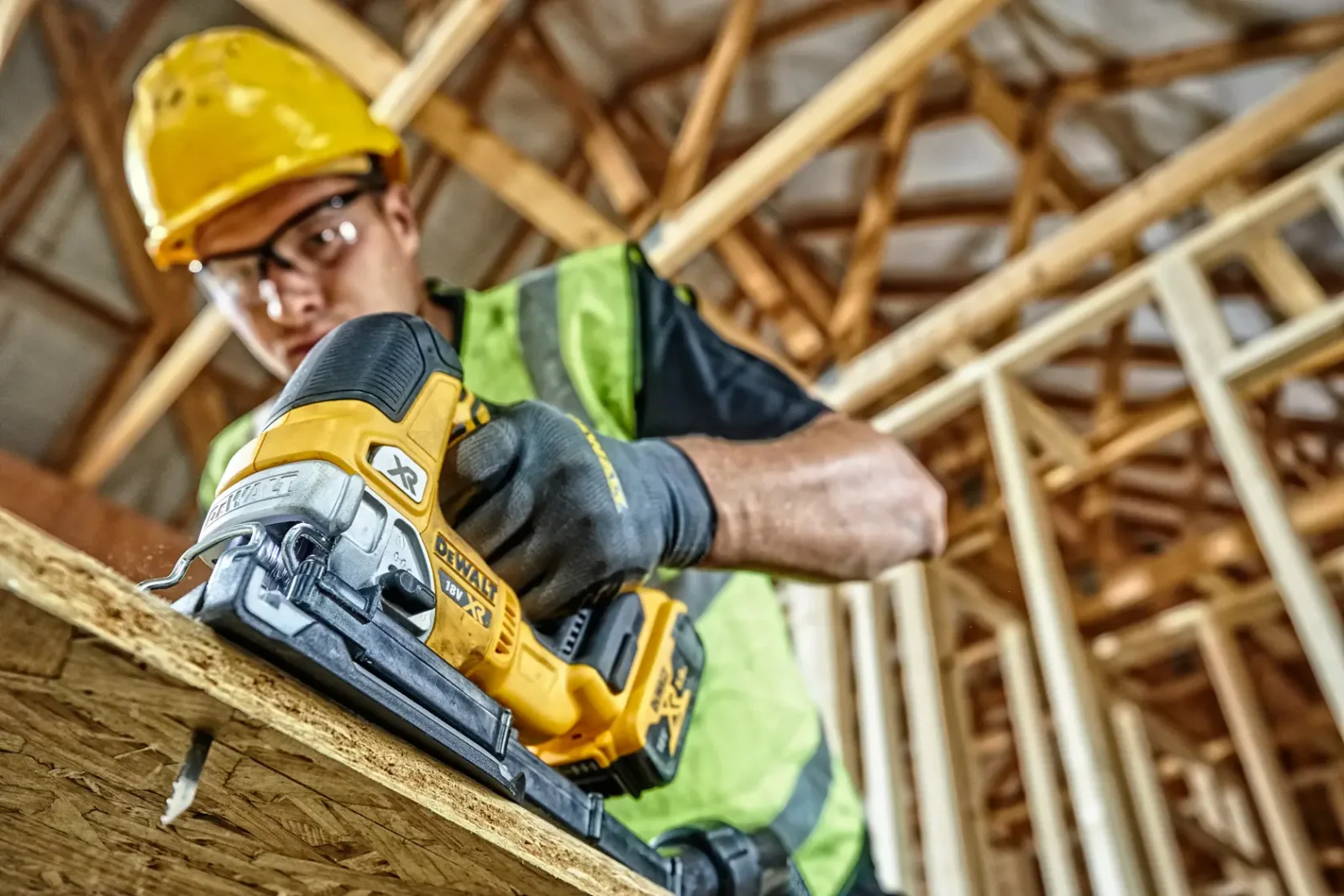

Curves and cut-outs on site

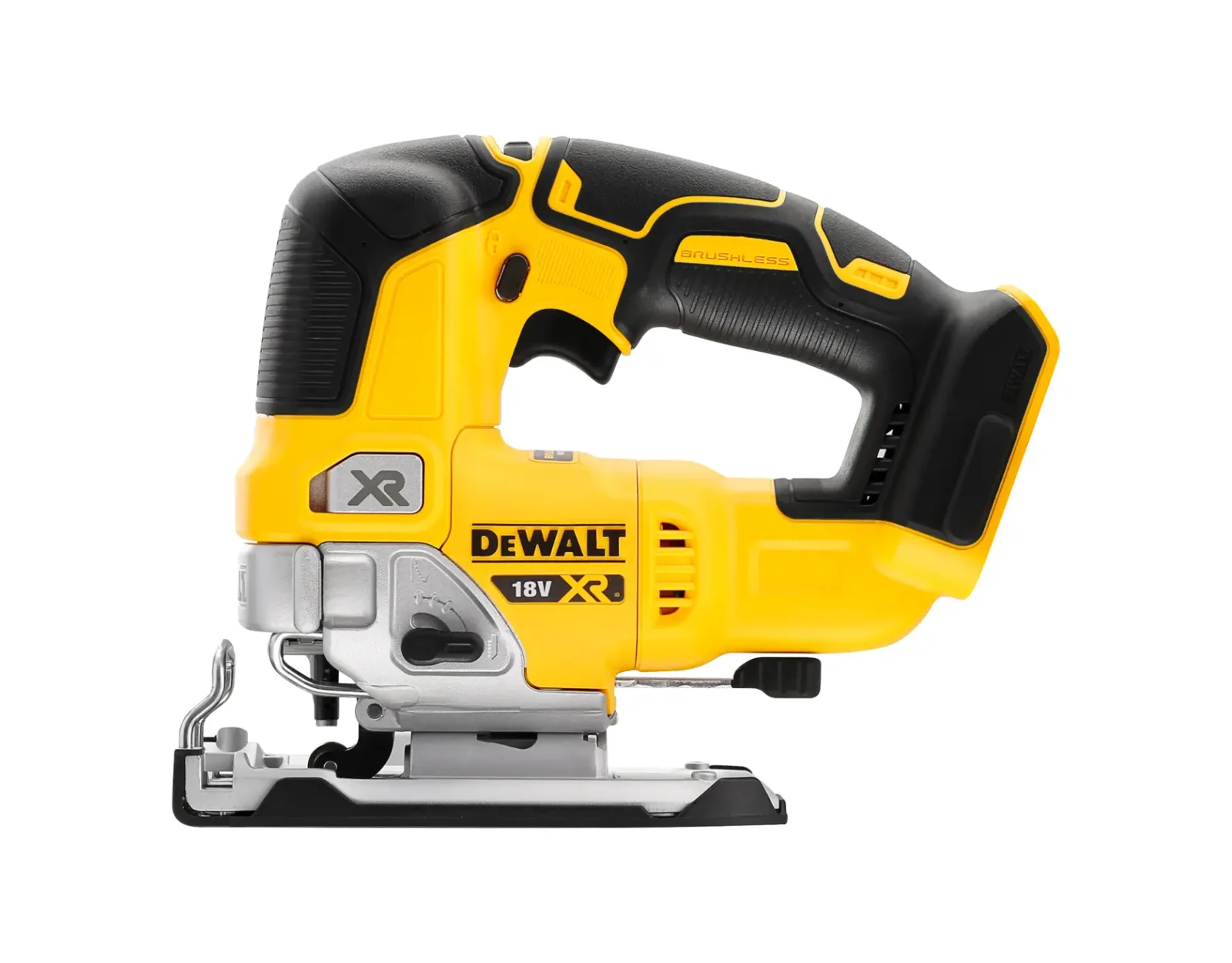

Kitchen fitters cutting sink and hob openings, carpenters scribing boards and installers trimming panels all need a jigsaw that tracks straight. The DCS334 has a 26 mm stroke, up to 3,200 strokes per minute and a 135 mm wood capacity, so it handles worktops and thick timber as well as sheet material.
Set up without tools
The lever-action blade clamp takes T-shank blades in seconds, and the shoe bevels to 45° without a hex key. Four pendulum settings let you trade finish for speed, while the built-in blower keeps the line clear. An anti-splinter insert and scratch-free shoe cover protect laminate and painted surfaces.
Dust control and batteries
An AIRLOCK-compatible dust port connects directly to a DeWalt extractor hose for cleaner indoor work. The jigsaw runs on any 18V XR battery, and is available bare, in a TSTAK box or as a kit with two 5.0 Ah batteries.
Specifications
Sawing
- Max. cutting depth, woodEF002882
- 135mm
- Max. cutting depth, steelEF004976
- 10mm
- Max. bevel angleEF004988
- 45°
- Stroke lengthEF000174
- 26mm
- Stroke rateEF004890
- 3,2001/min
- Pendulum settings
- 4
- Guide rail compatible
