Why this one
01
200 m range
±1.0 mm accuracy, even outdoors.
02
Optical viewfinder
Aim precisely at distant targets.
03
Tilt sensor
360° sensor for indirect heights and widths.
04
IP65
Protected against dust and water jets.
The story

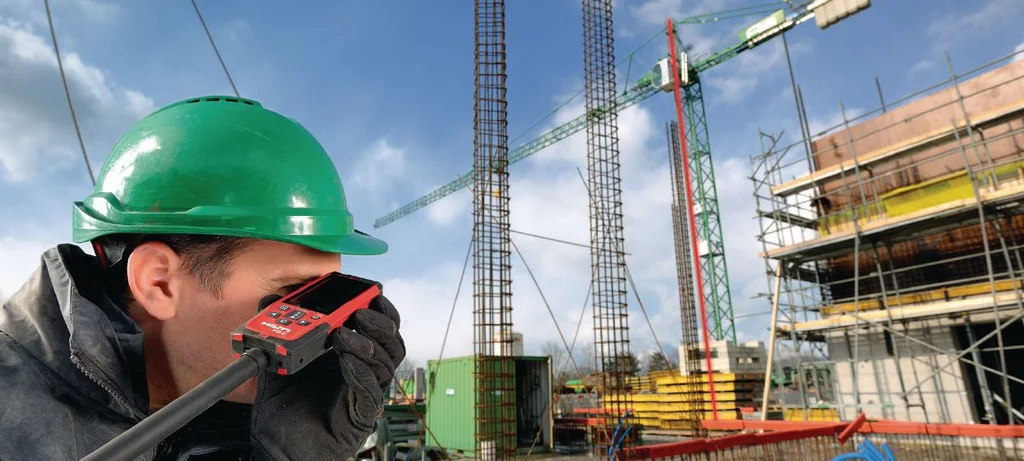

Measuring outside
Site engineers, builders, facade crews and landscapers need distances, areas and heights in bright daylight, where an ordinary red laser dot disappears. The PD-E measures up to 200 m with ±1.0 mm accuracy, and its optical viewfinder lets you aim at far targets.
Functions
A 360° tilt sensor and indirect measurement functions calculate heights and widths that cannot be measured directly. It handles area, volume, painter's area, Pythagoras, trapezoid and setting-out calculations and keeps the last 30 results. The IP65 housing resists dust and rain.
Power and kit
It runs on two AAA batteries rather than a tool battery platform and comes with a hand strap and a belt pouch. There is no Bluetooth interface; results stay on the device's memory of the last 30 measurements. It is a durable, single-purpose instrument for people who measure outside every day.
Specifications
Measuring & detection
- Beam colourEF019151
- Red
- Working rangeEF014226
- 200m
- Accuracy
- 1mm
- Laser classEF011881
- Class 2
- BluetoothEF007699
- — No
- Receiver included
- — No
