Why this one
01

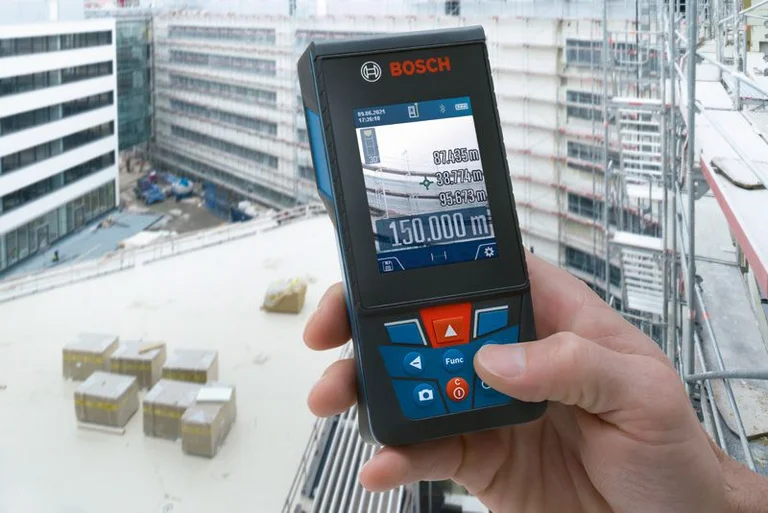

Camera viewfinder
Zoomed target view for measurements up to 150 m.
02
Rotating display
2.8" IPS colour screen, portrait or landscape.
03
Bluetooth or USB
Transfer readings to the MeasureOn app or a PC.
The story
Who it's for
Site managers, surveyors, landscapers and HVAC installers who measure long distances outdoors, where a laser dot is hard to find. The camera viewfinder with zoom shows exactly where the beam lands at up to 150 m. A 1/4" tripod thread steadies long readings.
What sets it apart
The 2.8" IPS colour screen is high-contrast, flips between portrait and landscape, and sits behind scratch-resistant glass. Measurements and images are saved together. An integrated lithium-ion battery charges over USB, so there are no AA cells to replace. It stores 50 values.
Documentation

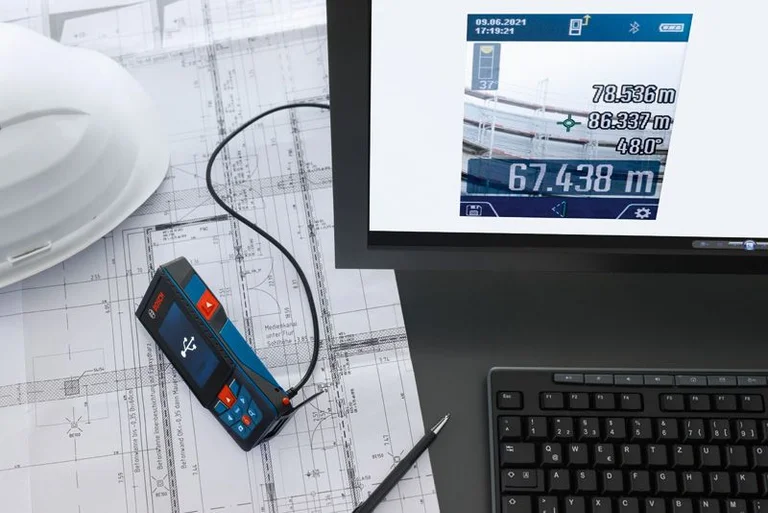

Data goes to the Bosch MeasureOn app over Bluetooth or to a PC via micro-USB cable. IP54 sealing covers dust and splashes. It comes with a pouch, carrying strap and USB cable. Accuracy is typically ±1.5 mm, and the inclinometer covers the full 360°.
Specifications
Measuring & detection
- Beam colourEF019151
- Red
- Working rangeEF014226
- 150m
- Accuracy
- 1.5mm
- Laser classEF011881
- Class 2

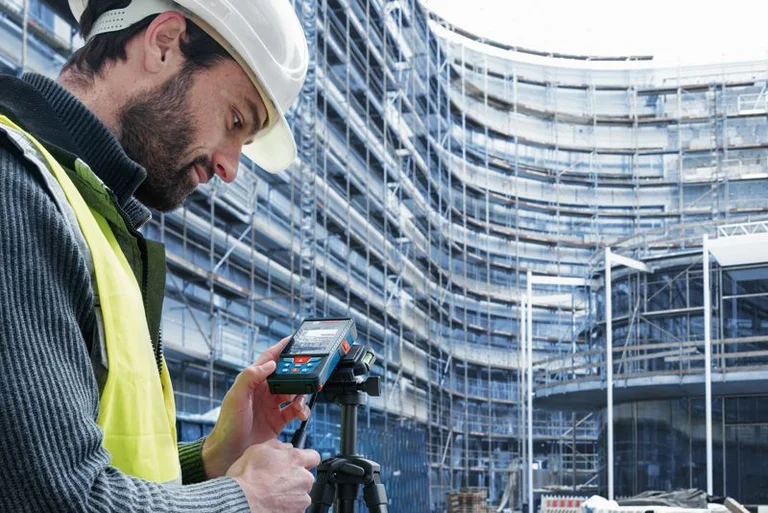

- Tripod thread
- 1/4″
- BluetoothEF007699
- ✓ Yes
- Receiver included
- — No
