Why this one
01
745 Nm nut-busting
542 Nm fastening torque.
02
122 mm, 1 kg
Reaches between pipes and brackets.
03
Trigger mode select
Change modes one-handed.
The story
Big torque, small tool

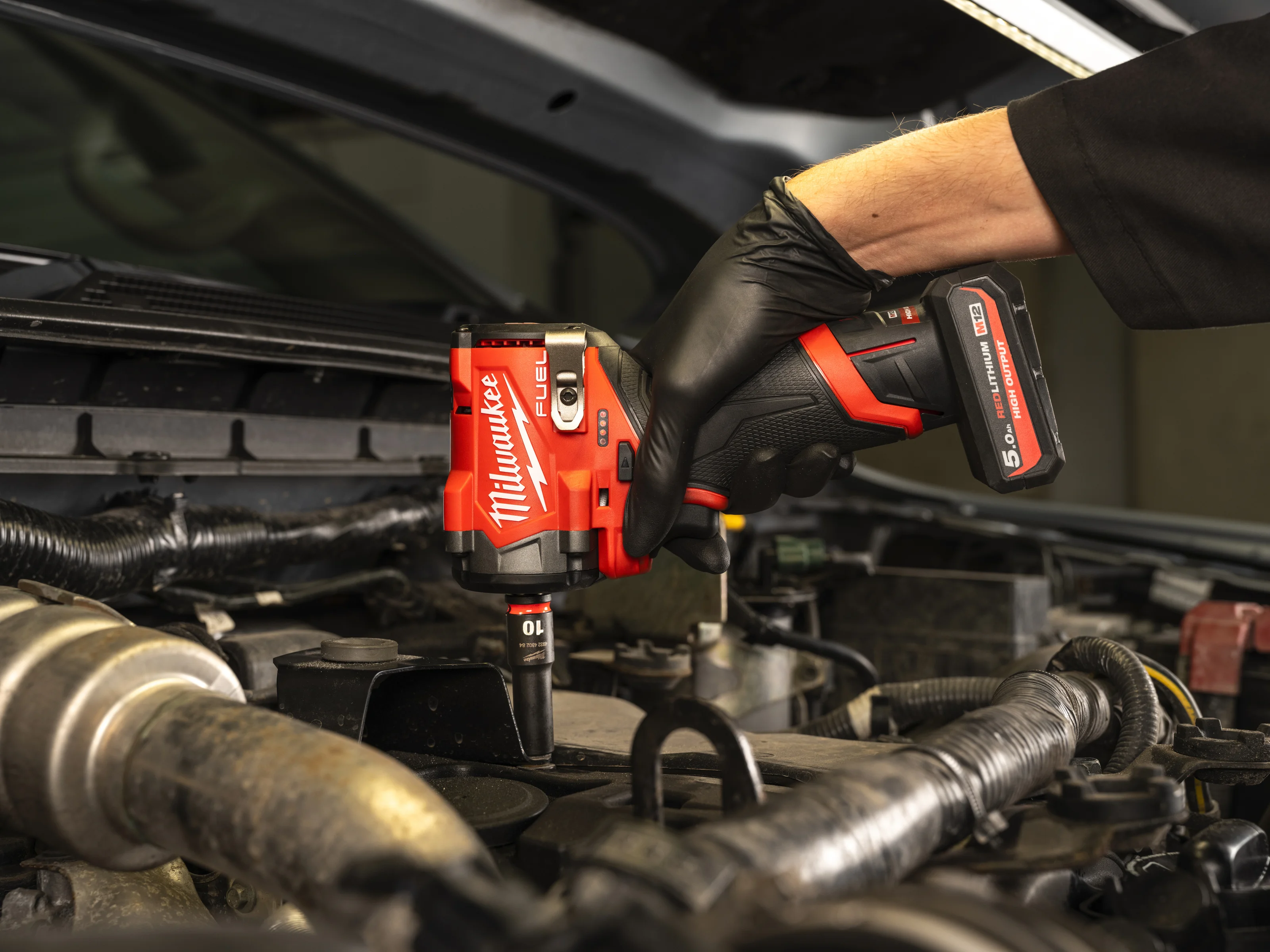

Installers, steel fixers and service technicians who tighten or free bolts up to M16 in plant rooms, vehicles and on scaffold get torque that used to need an 18V wrench. At 122 mm long and 1 kg without battery it reaches between pipes and brackets.
Fast mode changes
Four DRIVE CONTROL modes cover fastening at 271, 406 and 542 Nm and a gentle mode that stops at 20 Nm. The mode can be changed with the trigger, one-handed, and three LEDs light the work without shadows. The belt hook keeps it close on a ladder.
Packs for heavy work
The kit comes with two M12 HIGH OUTPUT 5.0 Ah packs, which give the extra current this wrench needs, plus a charger and HD Box. The bare tool suits M12 users. The friction ring allows quick changes of impact sockets.
Specifications
Drilling & driving
- Torque, hard jointEF002842
- 542Nm
- Breakaway torque
- 745Nm
- No-load speed, gear 1EF011125
- 3,0001/min
- Impact rateEF004984
- 3,3001/min
- Torque settings
- 4
- Tool holderEF002843
- ½″ square drive
- Hammer mode
