Why this one
01
4.5 J impact energy
Drills up to 32 mm in concrete on a single FLEXVOLT pack.
02
Anti-rotation and AVC
6.3 m/s² drilling vibration and automatic cut-out if the bit jams.
03
Quick-change chuck
Swap between SDS-plus and a 13 mm keyless chuck without tools.
04
Wireless Tool Control
Starts a paired DeWalt extractor automatically.
The story

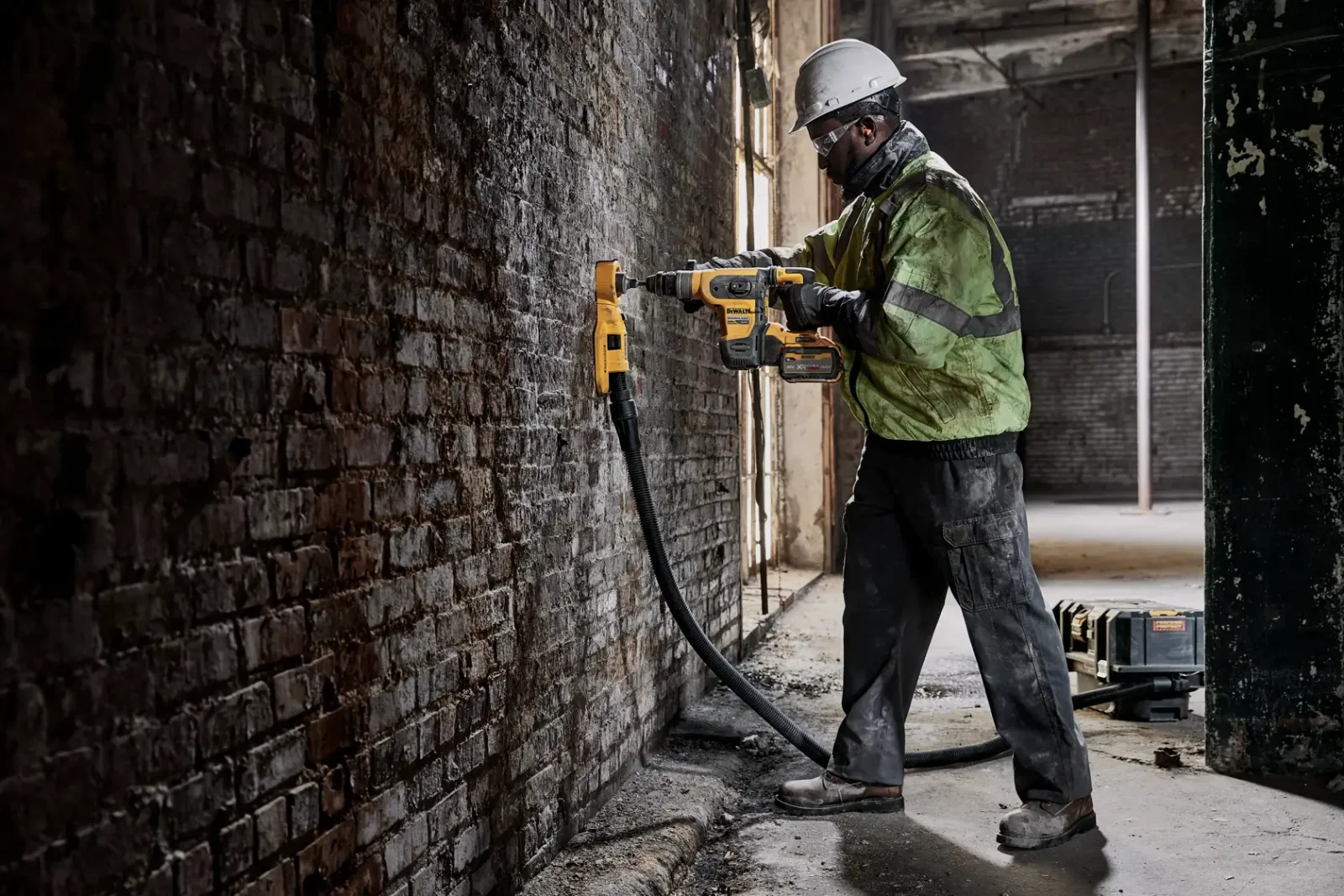

Big SDS-plus holes without a cable
Concrete contractors and M&E installers drilling through-holes and large anchors often reach for a corded 4 kg hammer. The DCH417 brings that class of performance to FLEXVOLT: 4.5 J per blow and a range up to 32 mm in concrete, so bigger anchors and service penetrations can be drilled where no mains supply is available.
Protection built in
Vibration control keeps the drilling value at 6.3 m/s², and the anti-rotation system cuts power if the bit binds in rebar. Rotation-stop turns it into a light chipping hammer. The quick-change system swaps the SDS-plus holder for a 13 mm keyless chuck, so the same tool drills timber and steel as well.
Clean drilling with the extractor

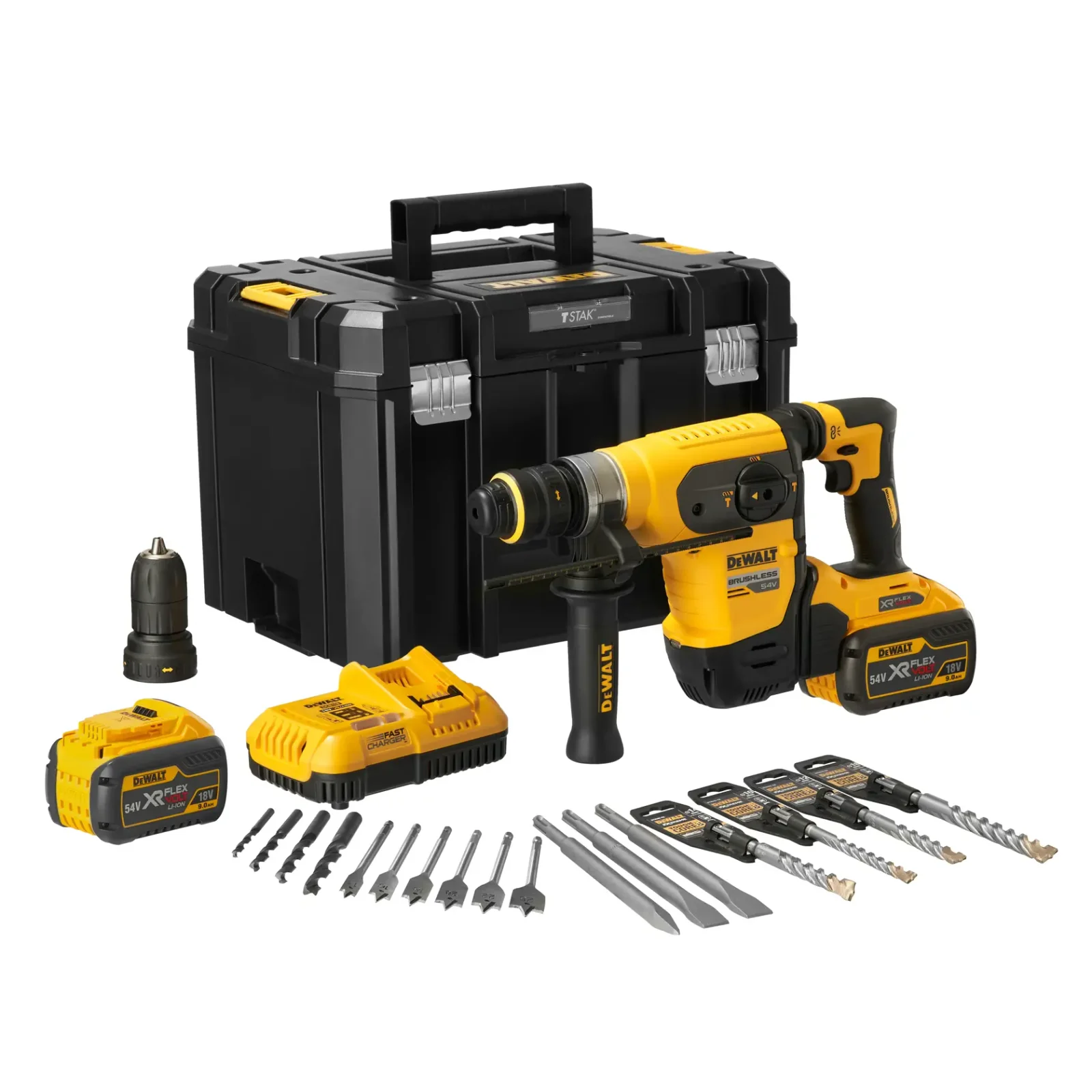

Wireless Tool Control pairs the hammer with a DeWalt extractor such as the DCV586M, which starts and stops with the trigger. This kit includes SDS-plus drills, flat wood bits, HSS drills and chisels, all packed in a deep TSTAK box with the two 9.0 Ah FLEXVOLT packs and charger.
Specifications
Concrete & demolition
- Impact energyEF002831
- 4.5J
- No-load speedEF008590
- 7251/min
- Tool holderEF002843
- SDS-plus
- Max. drilling diameter, concreteEF004553
- 32mm
- Chiselling
- ✓ Yes
- Rotation stop
- ✓ Yes
- Active vibration reduction
