Hilti PM 40-MG Green Multi-Line Laser
Three green 360° lines for whole-room layout
- 12V
- 100m
- 40m
In the box
- 1×Case PM 40-MG
A multi-line laser with three green 360° planes for levelling, plumbing and squaring whole rooms. It holds ±2 mm at 10 m and reaches 40 m, or 100 m with a receiver.
Why this one
01
Three green planes
Level, plumb and square in one setup.
02
Accurate to ±2 mm
±2 mm at 10 m; 40 m range, 100 m with receiver.
03
Axicon protection
Metal housing keeps the optics accurate.
04
1.5 days per charge
Rechargeable B12 Li-ion battery.
The story
Layout for fit-out

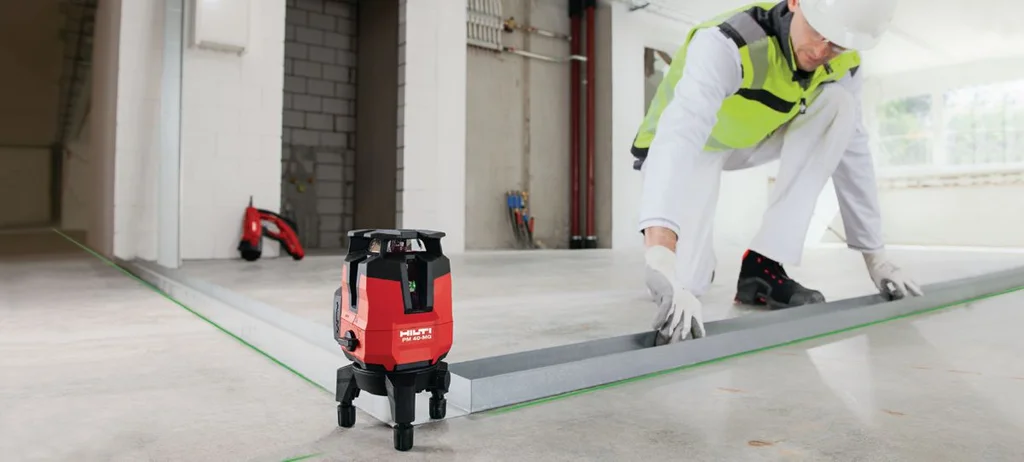

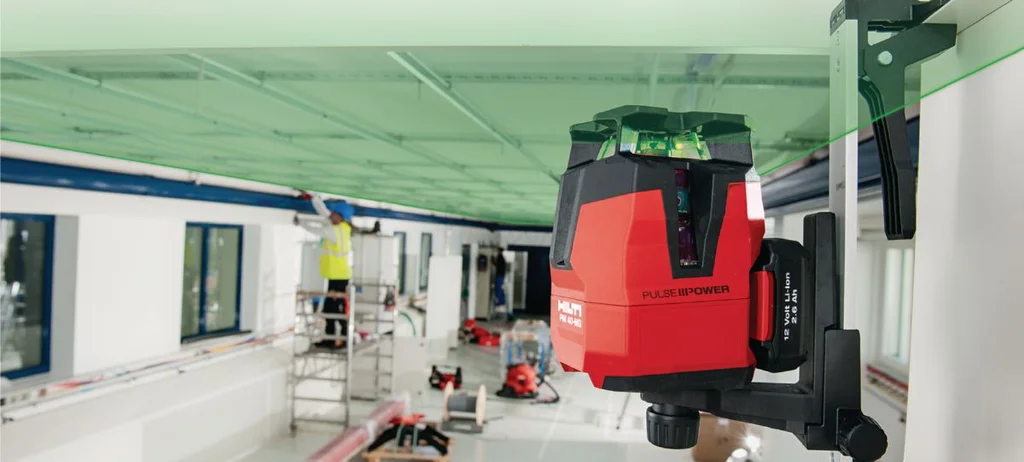

Drylining, ceiling, electrical and joinery crews set out partitions, ceilings, sockets and cabinets from reference lines. The PM 40-MG projects one horizontal and two vertical 360° green planes, so a single setup covers a whole room, with ±2 mm accuracy at 10 m.
Visible and protected
Green beams are easier to see indoors than red, with 40 m working range or 100 m with a line receiver. Hilti's Metal Blade Axicon design protects the optics, and it warns when out of level or low on battery. It is class 2 and IP54.
Power
It runs on Hilti's 12V B12 battery, a separate platform from Nuron, for up to one and a half days of work per charge. The kit adds a B 12-30 battery and charger. It comes in a case, and the laser is class 2, so no special precautions are needed on site.
Specifications
Measuring & detection
- Beam colourEF019151
- Green
- Laser lines
- 3
- Laser planes (360°)
- 3
- Working rangeEF014226
- 40m
- Working range with receiverEF019450
- 100m
- Accuracy
- 2mm/10 m
- Self-levelling range
- 3°
- Laser classEF011881
- Class 2
- BluetoothEF007699
- — No
- Receiver included
- — No
Power
- Power sourceEF000145
- Cordless (battery)
- VoltageEF000002
- 12V
Physical
- IP ratingEF005474
- IP54
- LED work light
- — No
- Belt hook
- — No
