Why this one
01

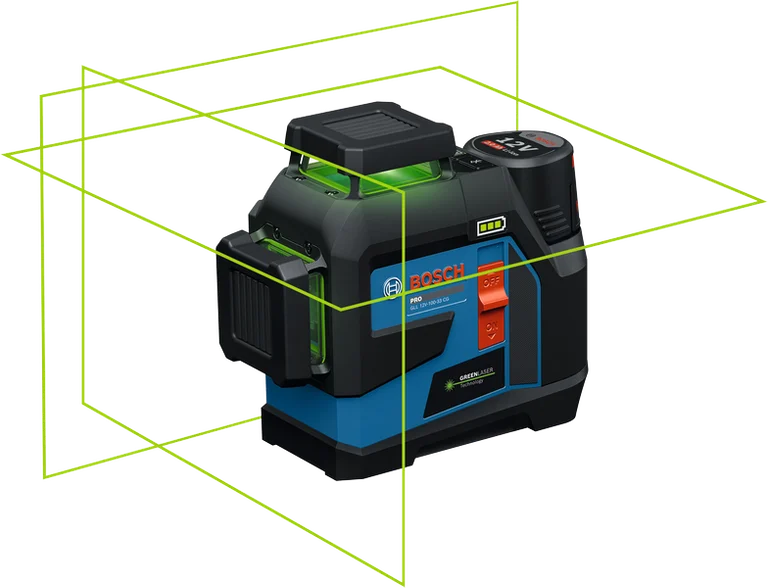

3 x 360° green
Full horizontal and two vertical planes, clearly visible.
02
Dual power
12V Li-ion or four AA cells as backup.
03
App control
Switch lines remotely with the Levelling Remote app.
04
IP65 housing
Rubber-reinforced for dusty and wet sites.
The story
Who it's for

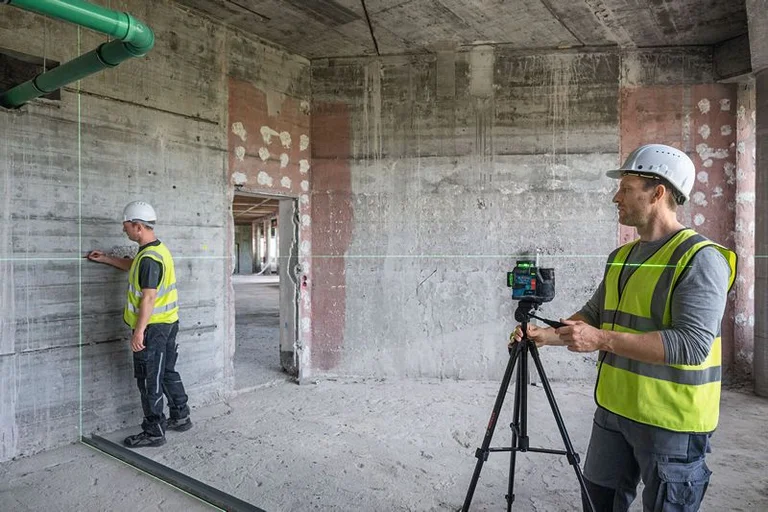

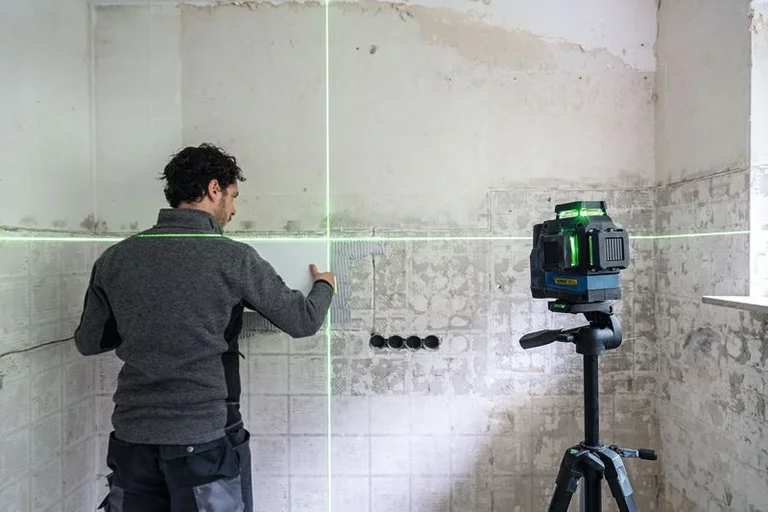

Drylining, tiling, flooring and electrical installers who need level and plumb lines around a whole room at once. Three full 360° planes lay out walls, partitions, ceilings and stairs from one setup without moving the laser. It also helps when setting out tiles and floors.
Built for site
A rubber-reinforced housing and protected windows carry an IP65 rating. The keypad shows line selection and battery level clearly, and receiver mode is always on for the optional LR 7, extending range to 100 m radius. Levelling takes about four seconds.
Power and control
It runs up to 6 hours on a Bosch 12V pack or 4 hours on AA cells in three-line mode, so a flat pack does not stop the job. The Levelling Remote app switches lines from a phone. It comes with an LB 10 mount, AA adapter, target plate and pouch.
Specifications
Measuring & detection
- Beam colourEF019151
- Green
- Laser lines
- 3
- Laser planes (360°)
- 3
- Working rangeEF014226
- 30m
- Working range with receiverEF019450
- 100m
- Accuracy
- 3mm/10 m
- Self-levelling range
- 4°
