Why this one
01
Compact 161 mm body
Short head length reaches inside cabinets, between studs and into service voids.
02
90 Nm maximum torque
Two-speed metal gearbox handles holes up to 55 mm in wood.
03
POWERSTACK kit
Two 5.0 Ah pouch-cell batteries keep the tool light and compact.
04
Pivoting foot LED
Three light modes aimed at the work, not the chuck.
The story
The everyday driver for fitters

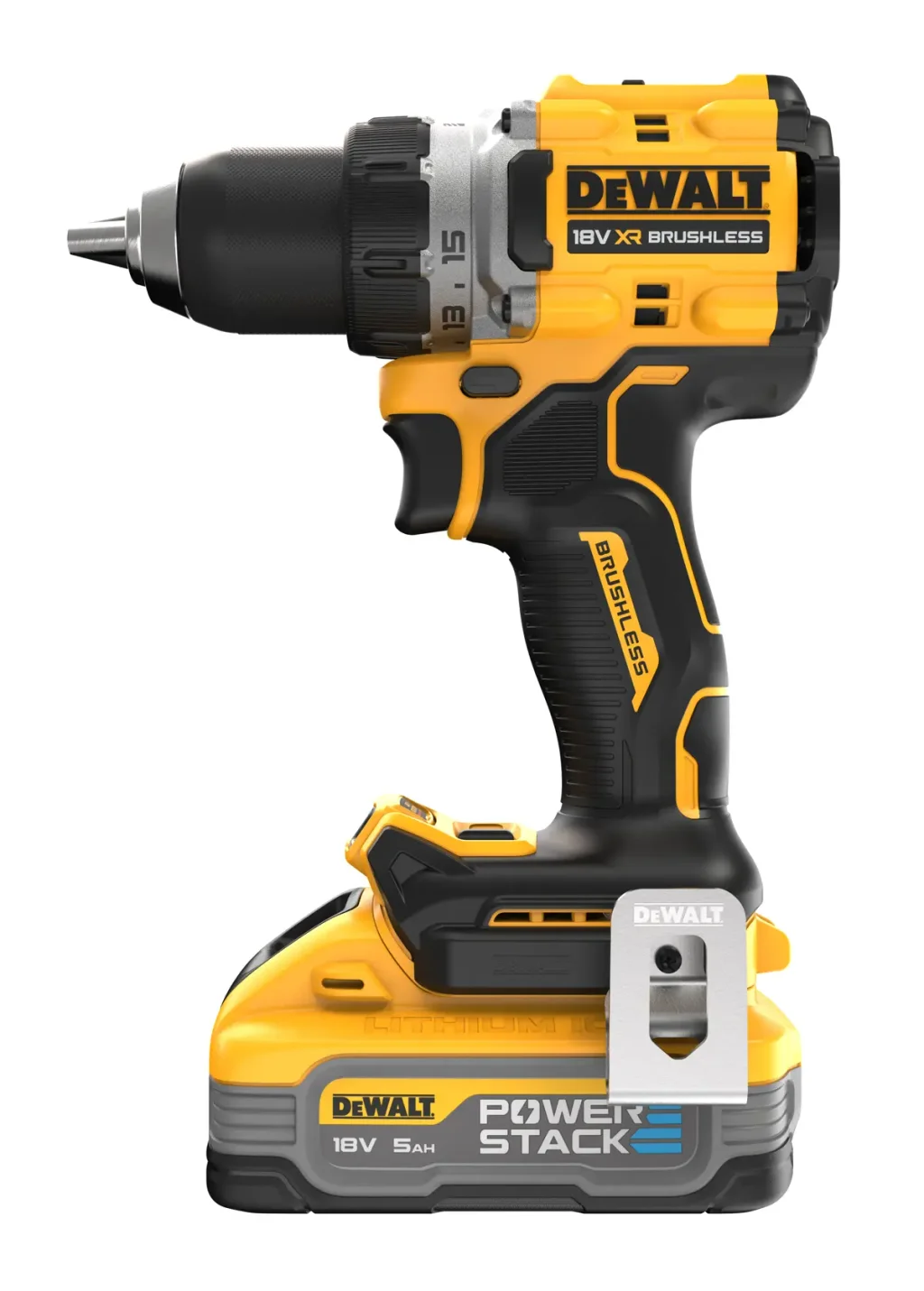

Kitchen fitters, electricians and interior installers spend most of the day drilling pilot holes and driving screws in tight spots. The DCD800 is built for that: at 161 mm long and 1.28 kg it slips into carcasses and ceiling voids, yet 90 Nm of torque covers most drilling and fastening without reaching for a heavier combi drill.
Simple, precise control
A two-speed all-metal gearbox and 15 clutch positions give repeatable results from small hinge screws to 55 mm holes in timber. The trigger is tuned for fine starts, and a three-mode LED in the foot pivots to light the work instead of the chuck, which helps in shadowy cupboards and under sinks.
Lighter with POWERSTACK
The kit comes with two 5.0 Ah POWERSTACK packs, whose stacked pouch cells are more compact than a standard 5 Ah battery and give the drill a shorter, better-balanced feel. Everything packs into a TSTAK box, and the batteries run every other tool on the 18V XR platform.
Specifications
Drilling & driving
- Torque, hard jointEF002842
- 90Nm
- No-load speed, gear 1EF011125
- 6501/min
- No-load speed, top gear
- 2,0001/min
- Gears
- 2
- Torque settings
- 15
- Tool holderEF002843
- Keyless chuck 13 mm
- Chuck capacityEF002832
- 13mm
