Why this one
01
M-class
Approved for hazardous dusts like silica.
02
Automatic filter cleaning
Adaptive cleaning keeps suction consistent.
03
Tool socket
Auto-start with tools up to 1200 W.
04
DRS compatible
Works with Hilti dust removal hoods.
The story
Silica-dust control

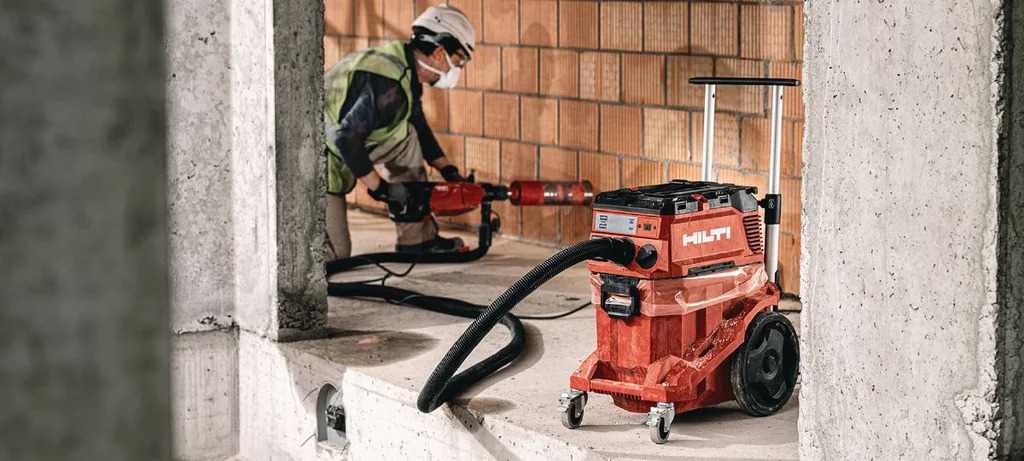

Contractors working on concrete, masonry and board need an M-class extractor to meet dust exposure rules. The VC 40M-X connects to Hilti's DRS hoods on hammers, breakers, grinders and saws, and handles wet slurry from core drilling. Air flow is 74 l/s at the motor and vacuum 24.5 kPa.
Keeps suction up
Adaptive automatic filter cleaning pulses the filter as it loads, so suction does not fall off during long cuts. The socket takes tools up to 1200 W and switches the extractor on with the tool. It can be converted to a continuous-bag system for easier emptying.

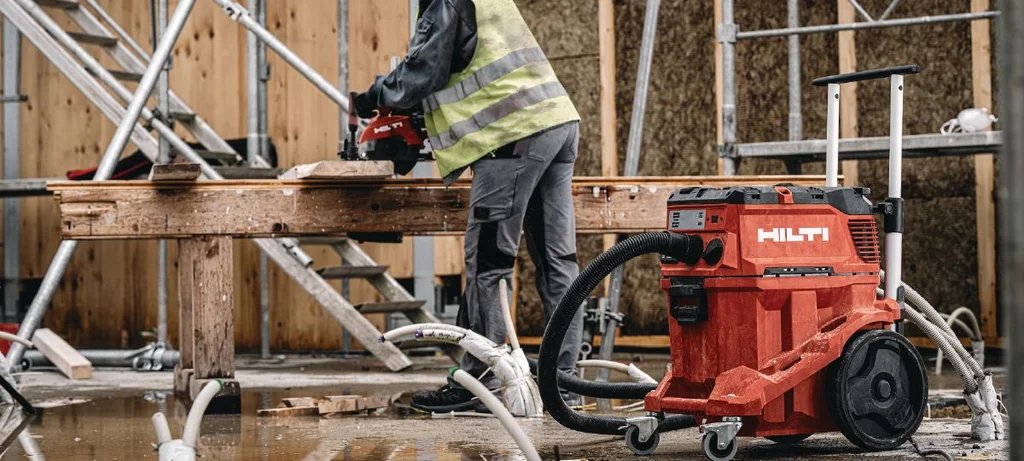

Built for sites
A push bar, rugged tyres and a 7 m cord suit site use. It comes with a filter and a 36 mm anti-static hose 4.65 m long, and weighs 14.4 kg. Its 22.8 l water capacity makes it suitable for coring slurry.
Specifications
Dust extraction
- Dust classEF012148
- M class
- Container volumeEF000176
- 30l
- Max. airflow
- 74l/s
- Max. vacuumEF002870
- 24.5kPa
- Hose diameterEF002872
- 36mm
- Hose lengthEF007907
- 4.65m
- Filter cleaning
