Why this one
01
Oscillating cutter
Rotating plus side-to-side motion for exact slots.
02
4–10 mm tenons
Up to 28 mm deep, height 5–30 mm, mitre 0–90°.
03
Built-in stop pins
Fast repeat positioning from edges or previous mortises.
04

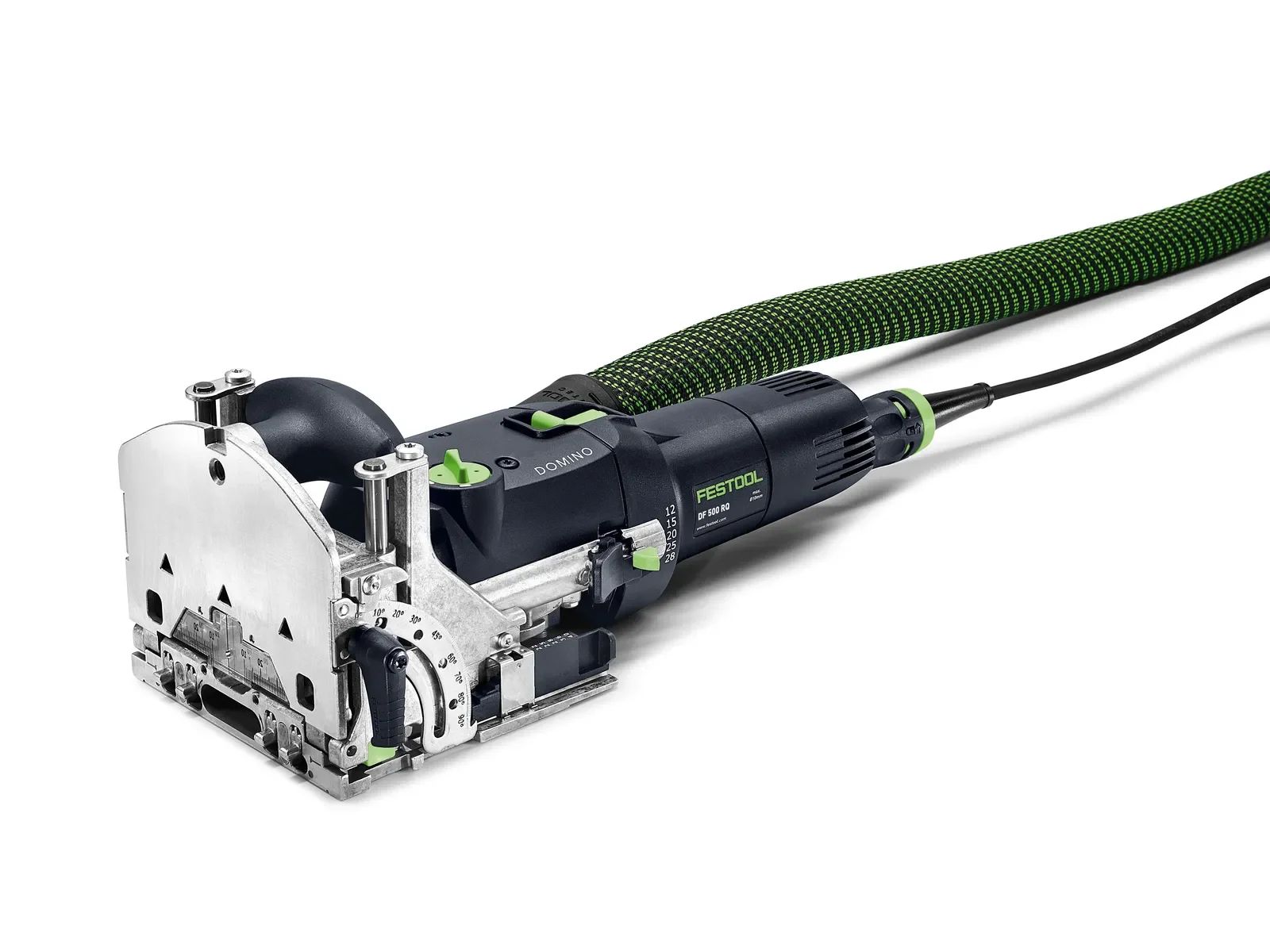

CLEANTEC connection
Extractor port for chip removal and slot accuracy.
The story
Loose-tenon joints by hand

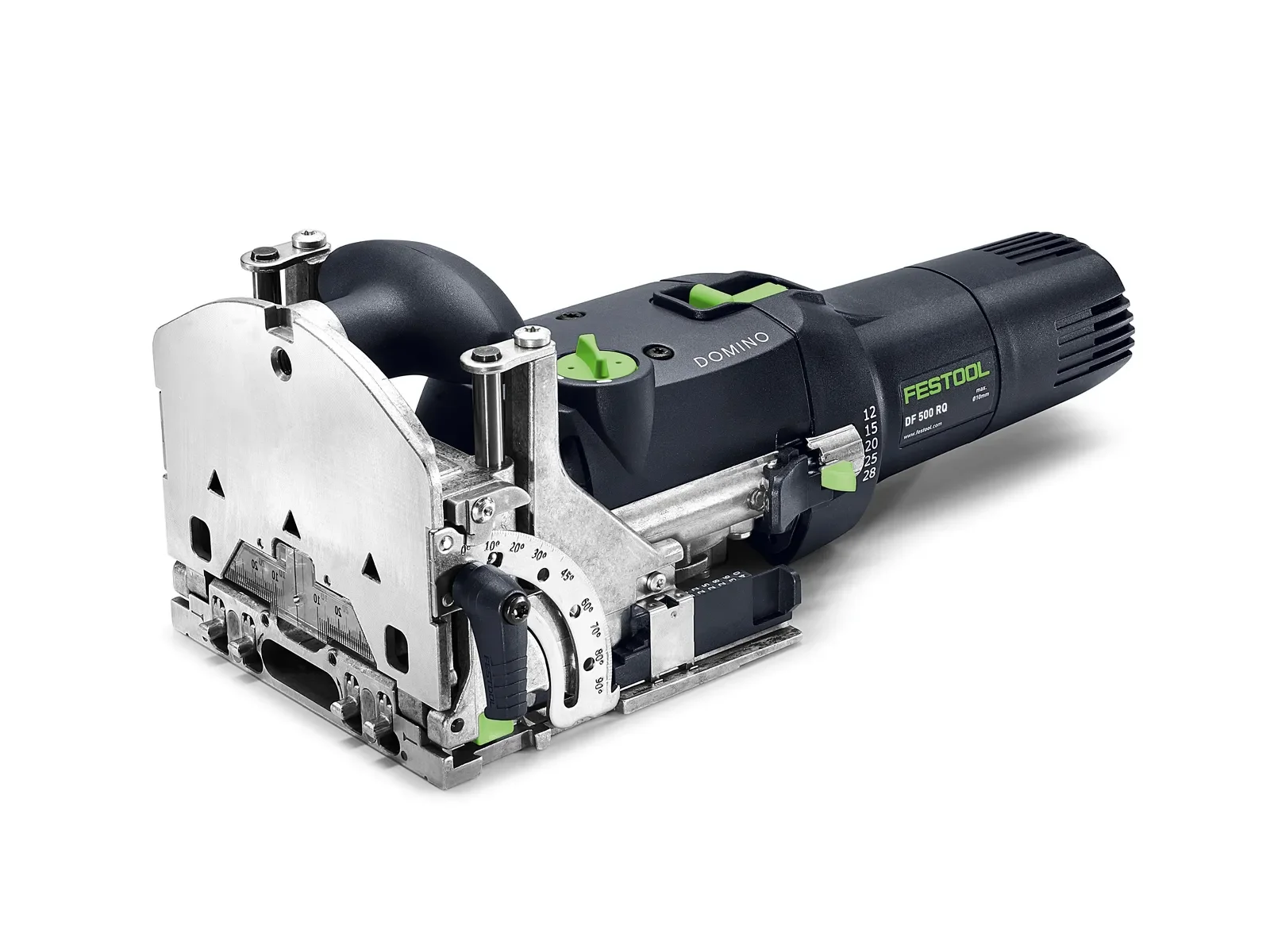

The DF 500 is the workshop DOMINO for cabinetmakers and joiners building carcasses, frames, drawers and panel joints. It routes slots for tenons from 4 × 20 mm to 10 × 50 mm, making joints that are strong and rotation-proof from the first tenon, and joins parts as thin as 12 mm.
How it cuts

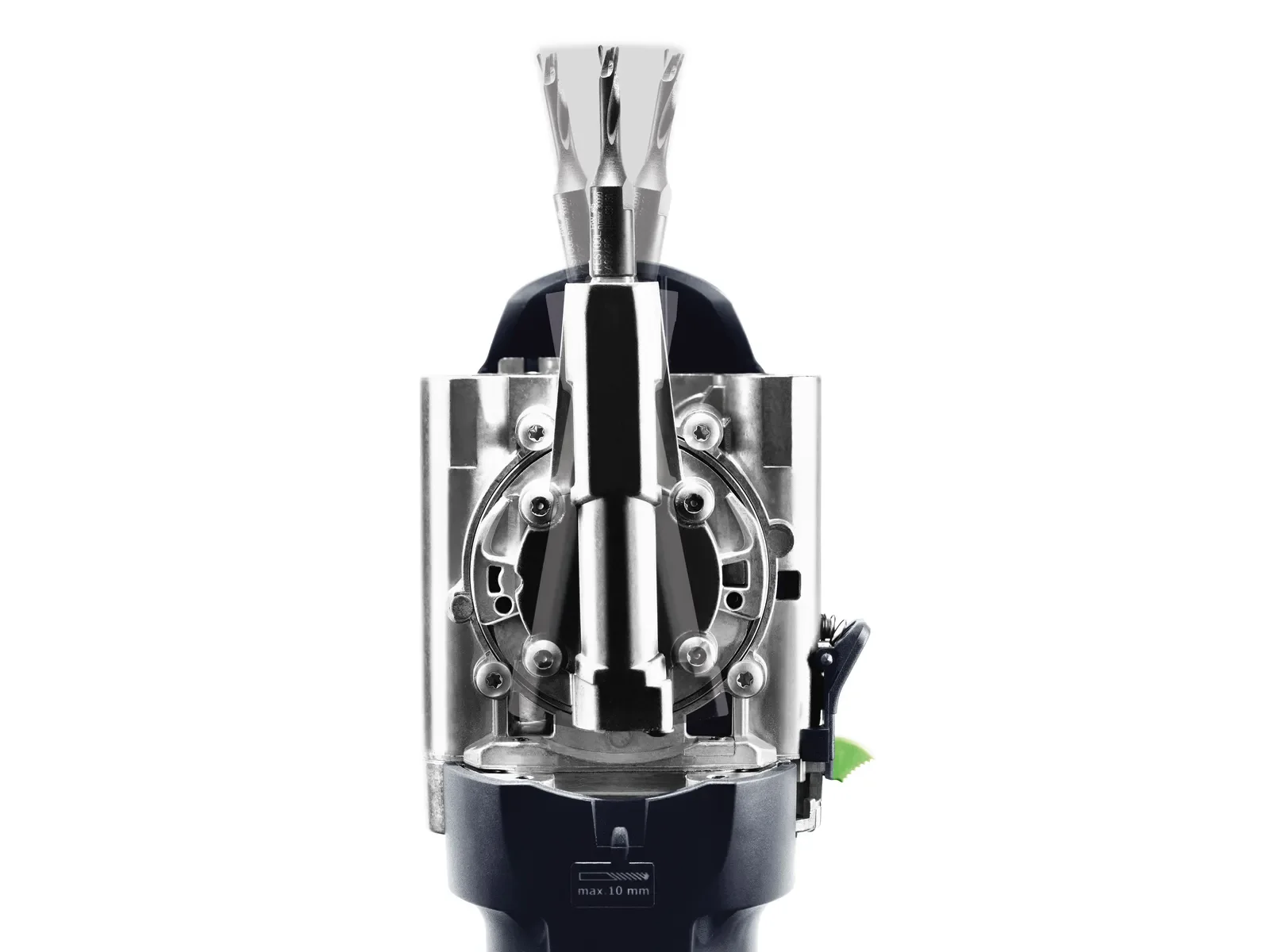

The 420 W motor turns the cutter at 25,500 rpm while it also swings sideways, cutting a clean, exact slot without overheating the cutter. Stop pins register off edges or previous mortises for repeat spacing, depth stops match standard tenon lengths, and a wider slot setting leaves room for adjustment on the second part.
DOMINO system
It uses the full range of DOMINO tenons in beech or weather-resistant sipo, the knock-down connectors and the trim and cross stops in the Set. The dust port takes CLEANTEC hoses, and the plug it cable is removable. The Plus version ships with a 5 mm cutter in a Systainer³ SYS3 M 187.
Specifications
Routing, joining & planing
- Max. tenon thickness
- 10mm
- Max. mortise depthEF011163
- 28mm
- No-load speedEF008590
- 25,5001/min
- Fine depth adjustment
- — No
- Dust extraction port
- ✓ Yes
Power
- Power sourceEF000145
- Corded (mains)
