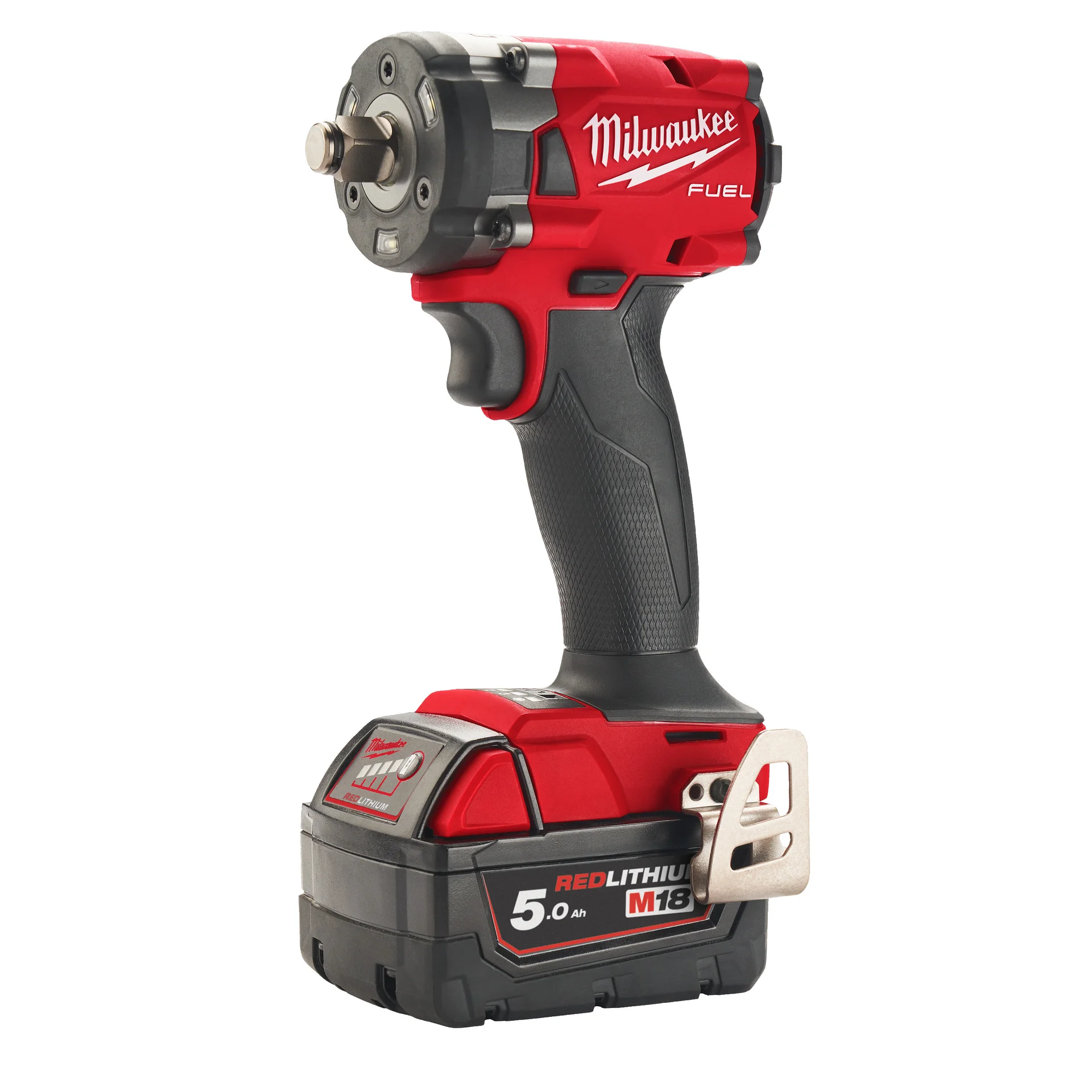

Milwaukee M18 FIW2F12 FUEL 1/2″ Compact Impact Wrench with Friction Ring
339 Nm impact wrench only 124 mm long
- 18V
- 339Nm
In the box
- 2×Single battery
- 1×Charger
- 1×Belt hook
The M18 FIW2F12 is a compact ½″ impact wrench with 339 Nm of fastening and nut-busting torque and a length of 124 mm. Four drive modes include a 34 Nm auto shut-off for hand-tight fastening.
Why this one
01
339 Nm
Fastening and nut-busting torque for bolts up to M16.
02
124 mm length
Reaches between beams and into cabinets.
03
4-mode DRIVE CONTROL
Includes a 34 Nm auto shut-off mode.
04
Bolt removal mode
Slows once the nut breaks loose.
The story
Mid-torque work
Steel fixers, installers and M&E crews fastening threaded rod, brackets, anchors and bolts up to M16 need torque but not the bulk of a high-torque wrench. At 124 mm long it fits between beams and inside cabinets where bigger wrenches cannot reach.
Four modes
DRIVE CONTROL gives three speed and torque settings plus a mode that stops at 34 Nm to avoid over-tightening. Bolt removal mode delivers full torque to break a nut loose, then slows down so it does not fly off the thread. Three LEDs light the work without shadows.
Sockets and packs
The friction ring allows quick socket changes. The kit includes two 5.0 Ah packs and a fast charger in an HD Box; bare versions are also available. Use impact-rated sockets and keep the wrench in a PACKOUT box with the rest of the install kit.
Specifications
Drilling & driving
- Torque, hard jointEF002842
- 339Nm
- Breakaway torque
- 339Nm
- No-load speed, gear 1EF011125
- 2,4001/min
- Impact rateEF004984
- 3,4001/min
- Torque settings
- 4
- Tool holderEF002843
- ½″ square drive
- Hammer mode
- — No
- Kickback control
- — No
- Interchangeable heads
- — No
Power
- Power sourceEF000145
- Cordless (battery)
- VoltageEF000002
- 18V
- Motor
- Brushless
Physical
- LengthEF001438
- 124mm
- VibrationEF017820
- 17.2m/s²
- Vibration uncertaintyEF017821
- 1.5m/s²
- Sound pressureEF017718
- 99.79dB(A)
- Sound powerEF017719
- 110.79dB(A)
- LED work light
- ✓ Yes
- Belt hook
- ✓ Yes
